XVX Trooper63 HE Dual-RGB Magnetic Gaming Keyboard

Name: XVX Trooper63 HE Dual-RGB Magnetic Gaming Keyboard
Brand: XVX Keyboard
SKU: JP-XVX-LKLJB-Trooper63-cizhou
Price: 67.19 USD
Availability: InStock

£67.19 GBP

New Launch $10 Off

Color: Stella White

Quantity

Highlight Features

Gemini Dual-Lighting RGB System
Gemini HE Dual-Diffuser Magnetic Switches
Creative Wedge PRISM Keycap Design
Sleek Look with CNC-Machined Aluminum Case
Custom-Tuned Mechanical-Like Typing Experience
Web Driver Customization

Keyboard Specs

Model: XVX Trooper63 HE
Color Option: Stella White / Phantom Black / Sakura Pink
Layout: ANSI 63% 64-Key
Color Option: White / Black / Pink
Keycap: Wedge PRISM Cherry Profile Double-Shot Keycap
Double-Layer Keycap: Double-shot shine-through ABS (top layer) + PC (second layer)
PC Keycap: UV-printed non-shine-through Frost PC
Stock Switch: Gemini HE Dual-SMD Magnetic Switch
Case Material: Aluminum
Case Coloring Processing: Powder-coating
Plate: 1.5mm, Carbon Fiber material
PCB: Non-flex-cut, 1.2mm, FR4 material
USB Polling Rate: 1000Hz
Sensor Scan Rate: 32KHz
Key Scan Rate: 4000Hz
RT Precision: 0.01mm adjustable
Latency: 1ms
RGB System: Dual-Lighting (North + South)
RGB LEDs: Flicker-free 16.8M Colors Per-Key RGB
Mounting Style: Tray Mount
Sound Dampeners: PORON Plate Foam + IXPE Switch Pad + PET Acoustic Film + PORON Case Foam
Connection Type: Wired
Hot-Swap: Yes
Interface: USB Type-C
Compatible Operating Systems: Windows / macOS / Linux
Keyboard Weight: 673 gram
Dimensions: 304.8 × 110.5 × 32 mm
Web Driver: Link

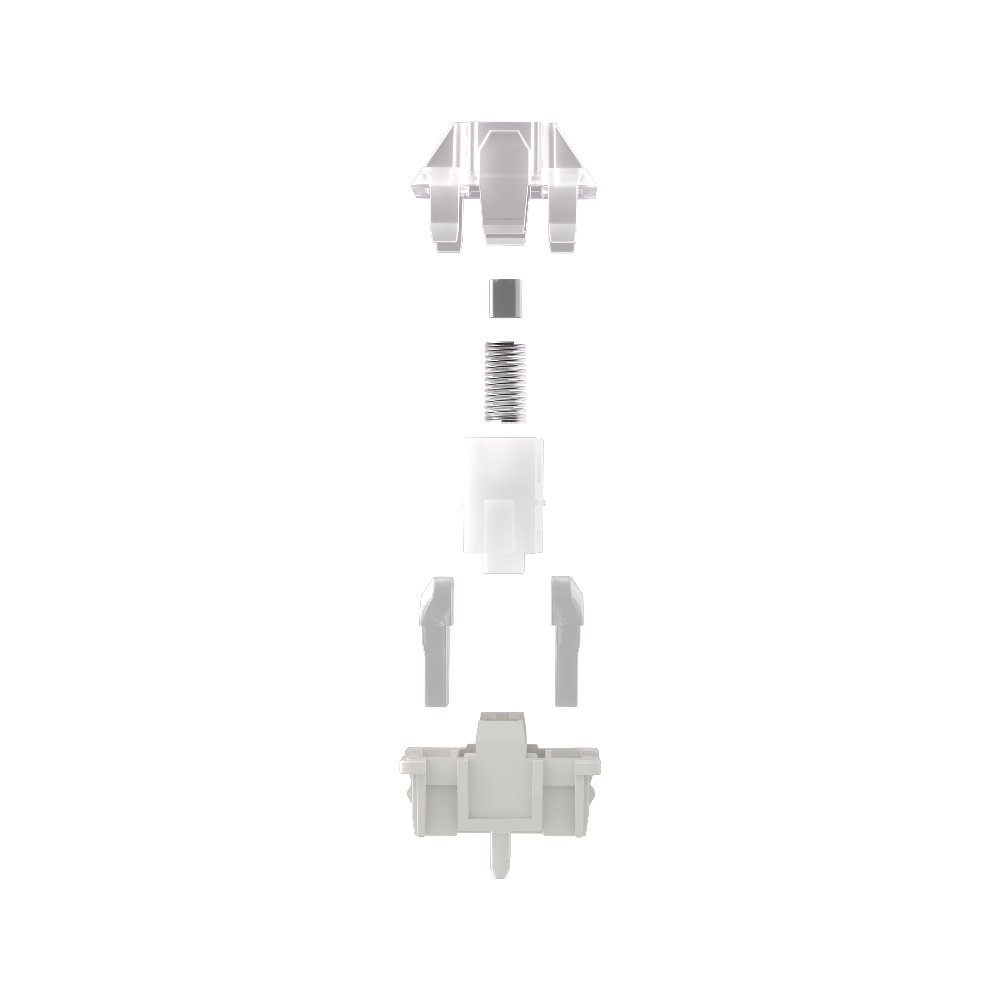

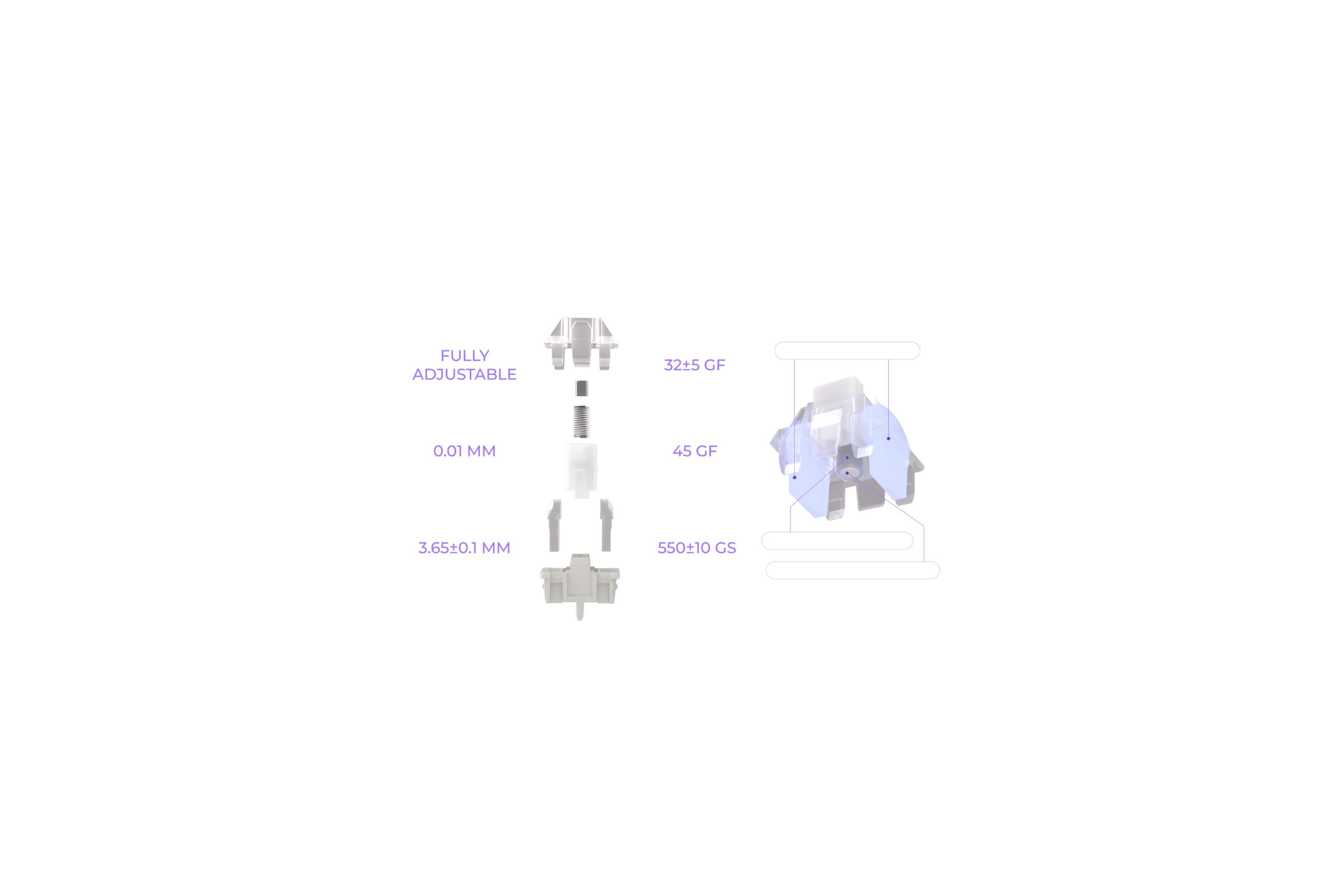

Switch Specs

Model: XVX Gemini HE Magnetic Switch
Type: Linear
Top Housing: PC
Bottom Housing: PA66 Nylon
Stem Material: POM
Actuation Point: Fully Adjustable
Actuation Adjustment Precision: 0.01 mm
Lifespan: 100 million+ clicks
Spring: Stainless Steel
Spring Length: 19 mm
Total Travel: 3.65±0.1 mm
Initial Force: 32±5 gf
Bottom-out: 45 gf Max
Initial Magnetic Flux: 90±10 Gs
Bottom-Out Magnetic Flux: 550±10 Gs

Package Content

XVX L75 Air keyboard
USB Type-A to Type-C cable
2.4GHz wireless dongle ()
Keycap & switch 2-in-1 puller
Extra stock switches
User manual

Delivery and Shipping

Shipping Policy

At present, our standard shipping fees vary depending on the destination country/region and the total order value. As a result, shipping charges may differ by order. Please refer to the table below for detailed pricing information.

Please note that for orders eligible for free shipping, the minimum order amount refers to the actual amount paid by the customer after all discounts and promotions have been applied. Only orders exceeding the specified amount qualify for free shipping.

Region/Country	Shipping Cost
Japan, Malaysia, Singapore, Thailand, Vietnam	FREE (Order Value≥$20)
New Zealand, Australia、Hong Kong SAR, Taiwan, Brunei, Philippines、Canada、South Korea	$5.99 (Order Value＜$50）	FREE (Order Value≥$50)
Saudi Arabia, UAE, European Union, United Kingdom, Norway, Switzerland, Israel, Spain	$5.99 (Order Value＜$45）	FREE (Order Value≥$45)
United States	$9.99 (Order Value＜$30）	FREE (Order Value≥$60)
	$6.99 ($30≤Order Value＜$50）
	$4.99 ($50≤Order Value＜$59.99）
United States (Puerto Rico)	$19.99 (Order Value＜$50）	$14.99 (Order Value≥$50)
US remote areas & minor outlying islands	$9.99 (Order Value＜$50）	FREE (Order Value≥$50)
Mexico, Peru	$5.99 (Order Value＜$50）	$15 (Order Value≥$50)
Chile, Colombia	$6.99 (Order Value＜$100）	FREE (Order Value≥$100)
Serbia	$9.99 (Order Value＜$99）	FREE (Order Value≥$99.01)
Morocco	$6.99
Romania	$11.99 (Order Value＜$49）	$5.99 (Order Value≥$49.01)

Note: Free shipping applies only to orders that meet the minimum spend requirement and have a parcel weight within 3KG. If the order meets the free shipping amount but exceeds 3KG in weight, we will contact you and charge an additional shipping fee for the excess weight.

What countries and regions do we ship to?

Currently, we ship to countries and regions listed here: Check the list. Please contact support@xvxchannel.com if yours is not listed.

When will my orders be shipped out?

Once your order is submitted and paid, the in-stock products will be shipped out within 2- 3 business days, for Pre-Orders/Group Buys please check the product page for a specific shipping date.

How long does it take to deliver my order?

Delivery typically takes approximately 8–15 business days to reach your country, excluding certain remote areas. However, shipping times may occasionally be affected by external factors, which could result in delays.

If you have not received your package within 15 days, please contact us at support@xvxchannel.com for further assistance.

How do I track the shipping status of my orders?

Once your order has been shipped, the tracking number will be uploaded to your order details. You may check the shipping status via Order Tracking.

Do I have to pay import tax or customs fees?

Yes. Please be aware that VAT is included in your orders but there may be extra import duty or customs fees due to the policy of different countries. Please check the local regulation of customs duties first and customers need to take care of it by themselves.

Note: Due to current customs regulations in Brazil, we are unable to declare packages at a lower value. Undervaluation carries a significant risk of the package being held by customs. For customers in Brazil, if a package is destroyed by customs due to the customer’s failure to complete customs clearance in a timely manner, we will be unable to provide any after-sales support, including reshipment, refund, or replacement.

What if the tracking shows my package is being returned to the sender?

This situation usually occurs when the local carrier cannot reach the recipient or the delivery address is incorrect, causing the package to be returned to our overseas warehouse. This process may take up to 30 days.

If you receive such a notification, please:

1. Check your shipping information for errors.

2. If there is an error, provide the correct address to support@xvxchannel.com.

We will update the shipping information and arrange for redelivery once we receive confirmation from the carrier.

What if my package has been shipped but I have not received it?

1. Tracking status not updating:

If the tracking status remains unchanged for an extended period, contact support@xvxchannel.com. We will reach out to the carrier to obtain the latest update and inform you.

2. Tracking shows the package has been delivered:

· Check your mailbox or the area near your mailbox.

· The package may have been signed for by a family member or delivered to a neighbor.

· Check your yard or nearby surroundings.

3. If you suspect the package has been stolen, please provide the following information to support@xvxchannel.com for prompt assistance:

· Written proof of loss from the carrier

· Relevant video evidence from the delivery site

The Keyboard Built Around Dual-Lighting Concept

Hall Effect has always been about speed, but we think it could do more.

Trooper63 HE introduces the Gemini Dual-Lighting RGB System, combining Hall Effect performance with a new approach to RGB backlighting, keycap illumination, and visual expression.

Dual-Sided Lighting

Dual-Diffuser Switch

Flicker-Free 16.8M ARGB

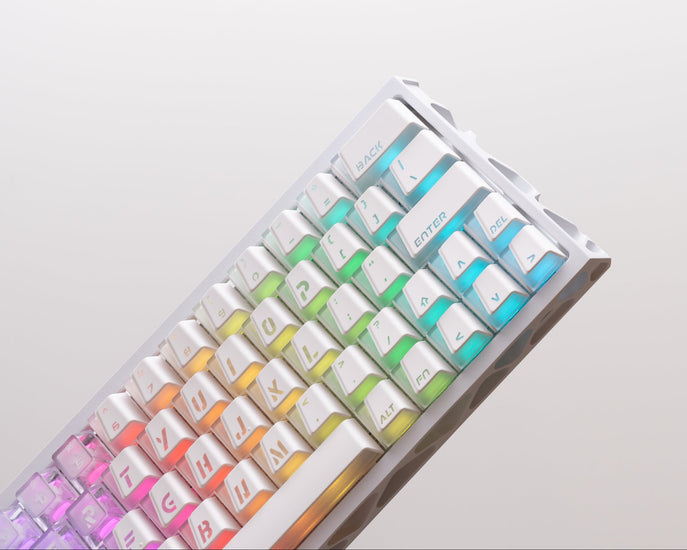

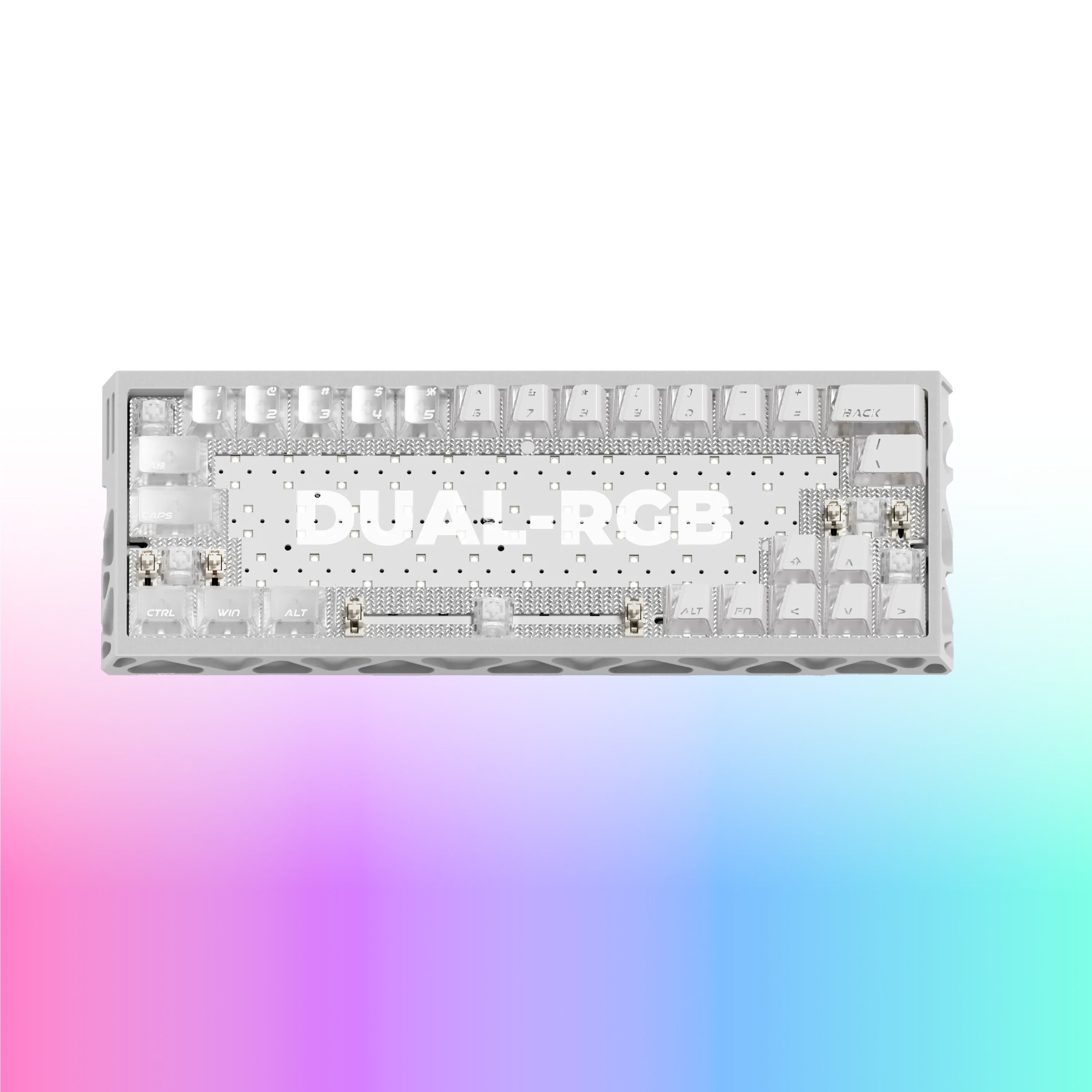

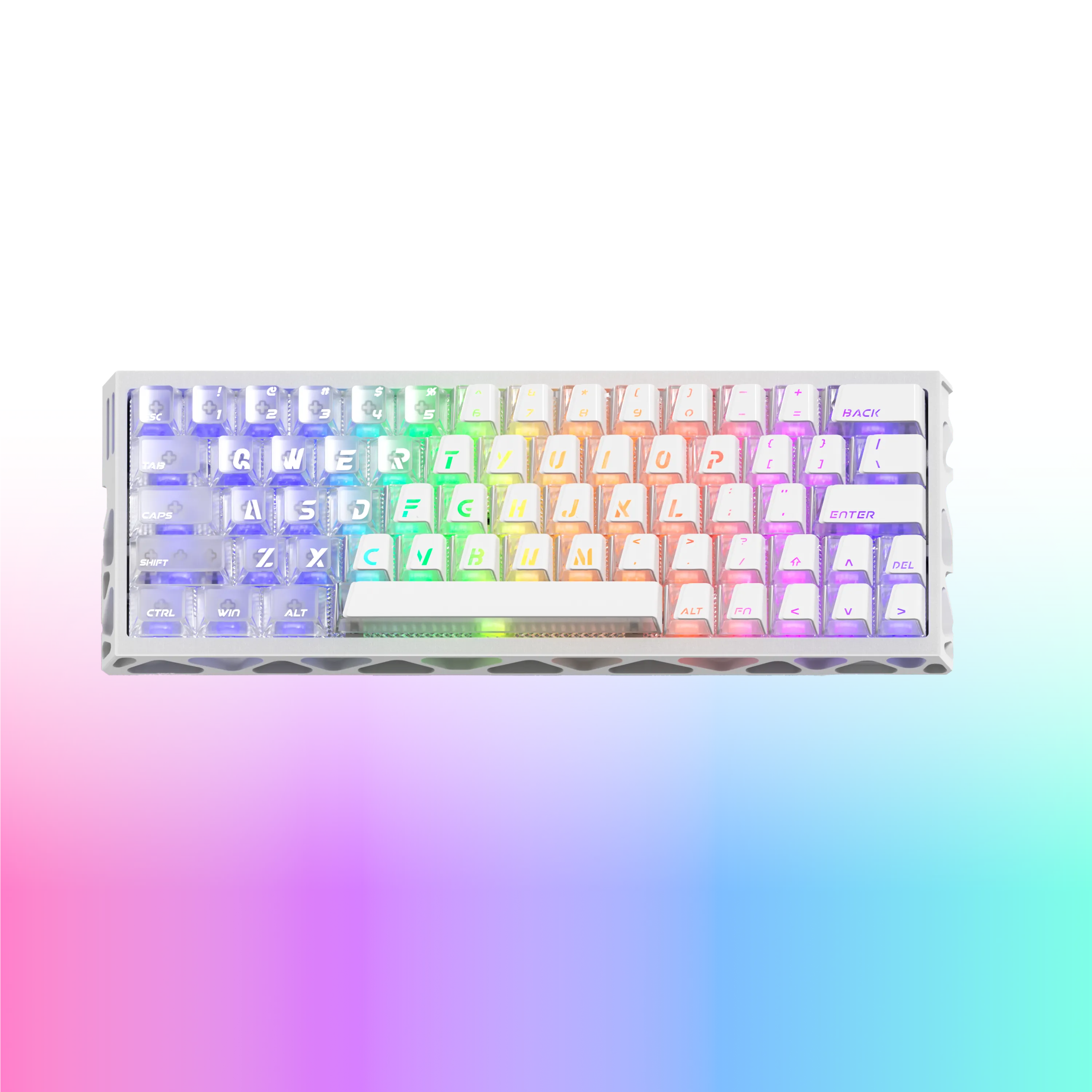

Gemini Dual-Lighting RGB System

North or South? No More Compromise.

Powered by Gemini Dual-Lighting RGB, Trooper63 HE combines north- and south-facing LEDs to fully illuminate both top- and side-printed legends. With independently controllable lighting zones and extensive customization in the driver, Gemini gives you more freedom to create and personalize your own lighting experience.

Gemini HE Dual-SMD Switch

Magnetic Performance. Mechanical Feel.

The custom Gemini HE Magnetic Switch delivers the speed and precision, while a proprietary dual-diffuser design brings more evenly distributed lighting experience. Pre-tuned for a smooth, consistent feel and refined acoustics, it balances competitive responsiveness with the satisfaction of everyday typing.

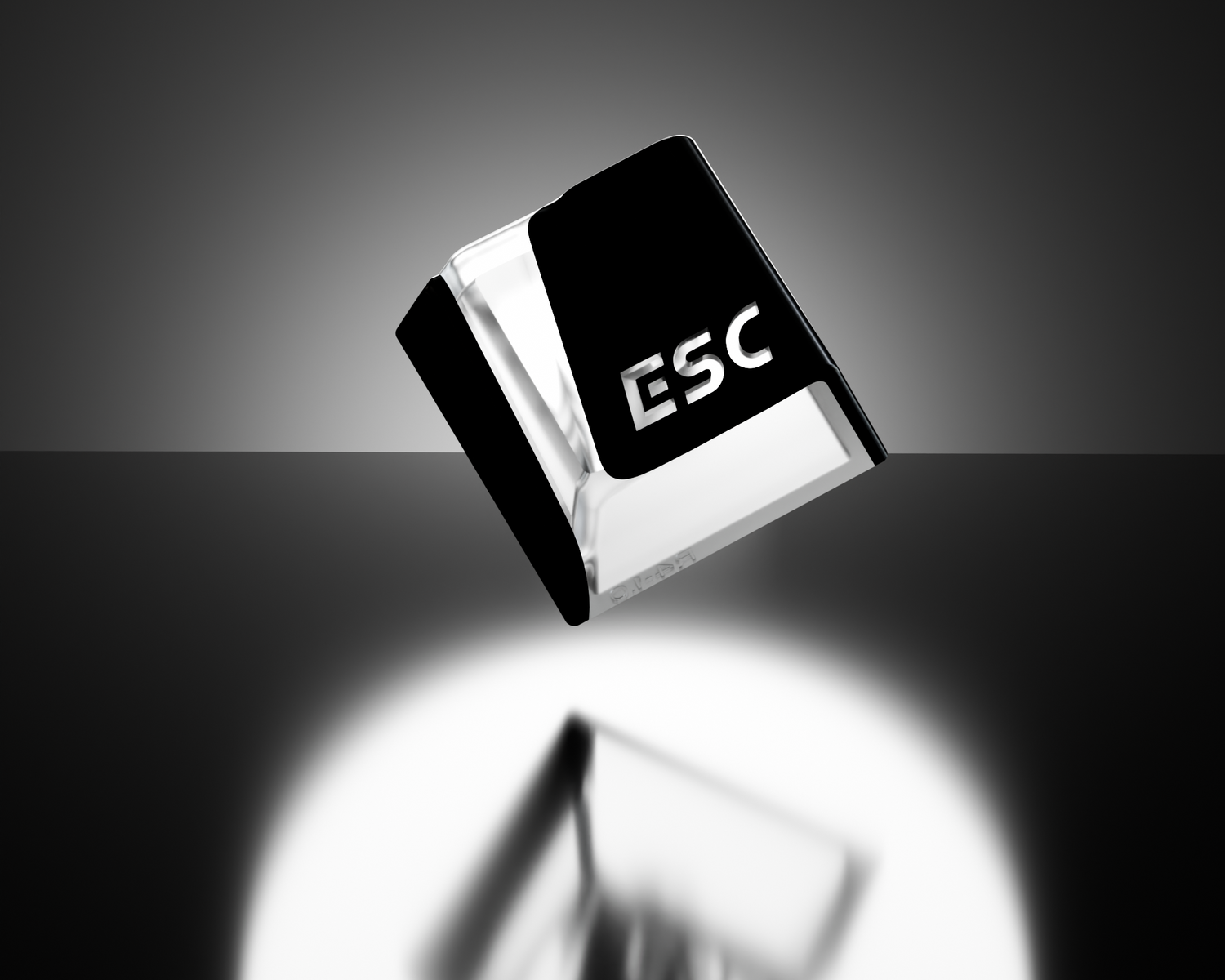

Original Wedge PRISM Keycap

Light, Shaped with Intention.

Inspired by futuristic skeletal exosuits, Wedge PRISM Keycaps combine a soft-touch ABS coating with translucent PC to create a layered and dimensional aesthetic.

Each keycap features an irregular faceted surface, creating shifting highlights and shadows as light moves across its contours.

Add to Cart

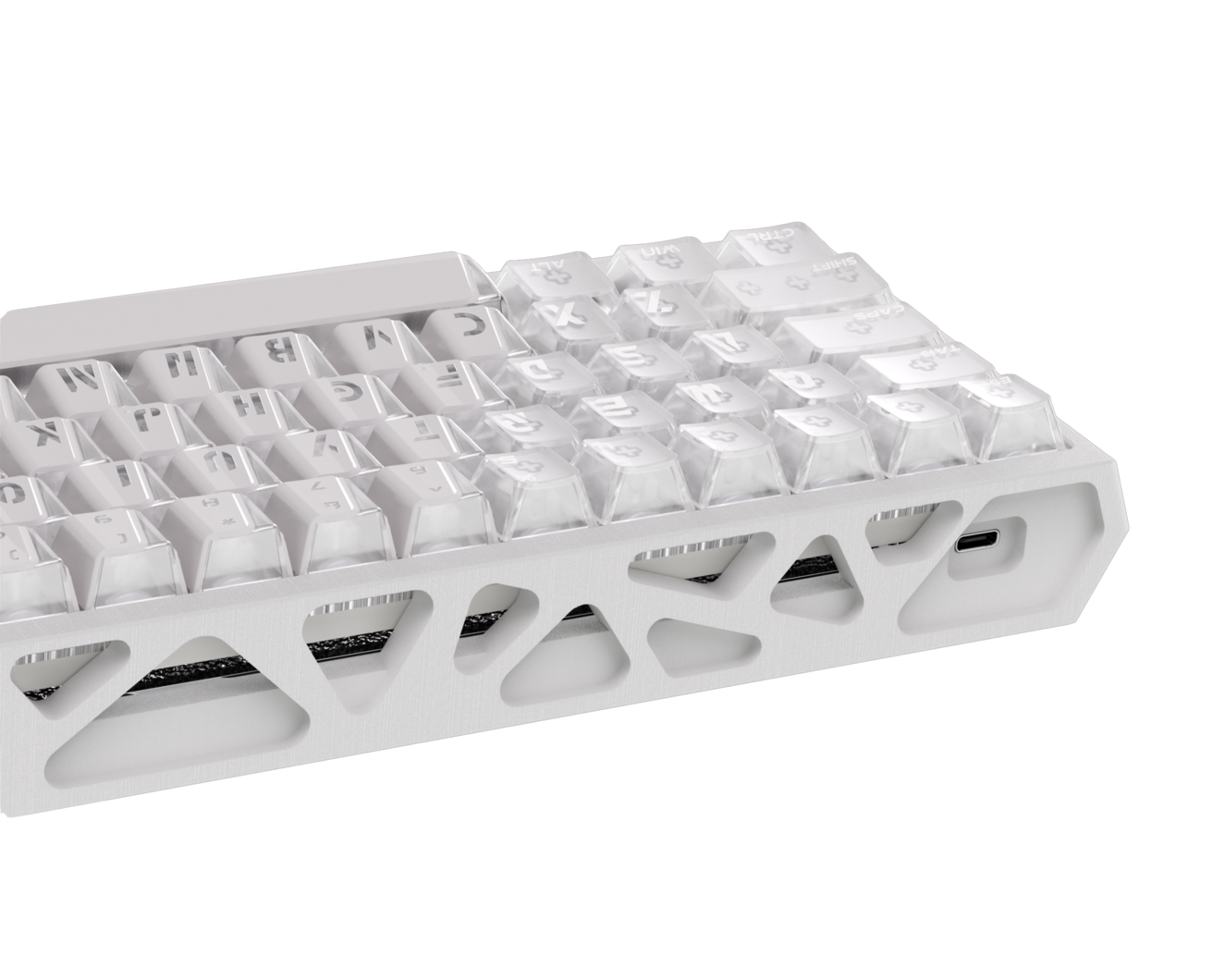

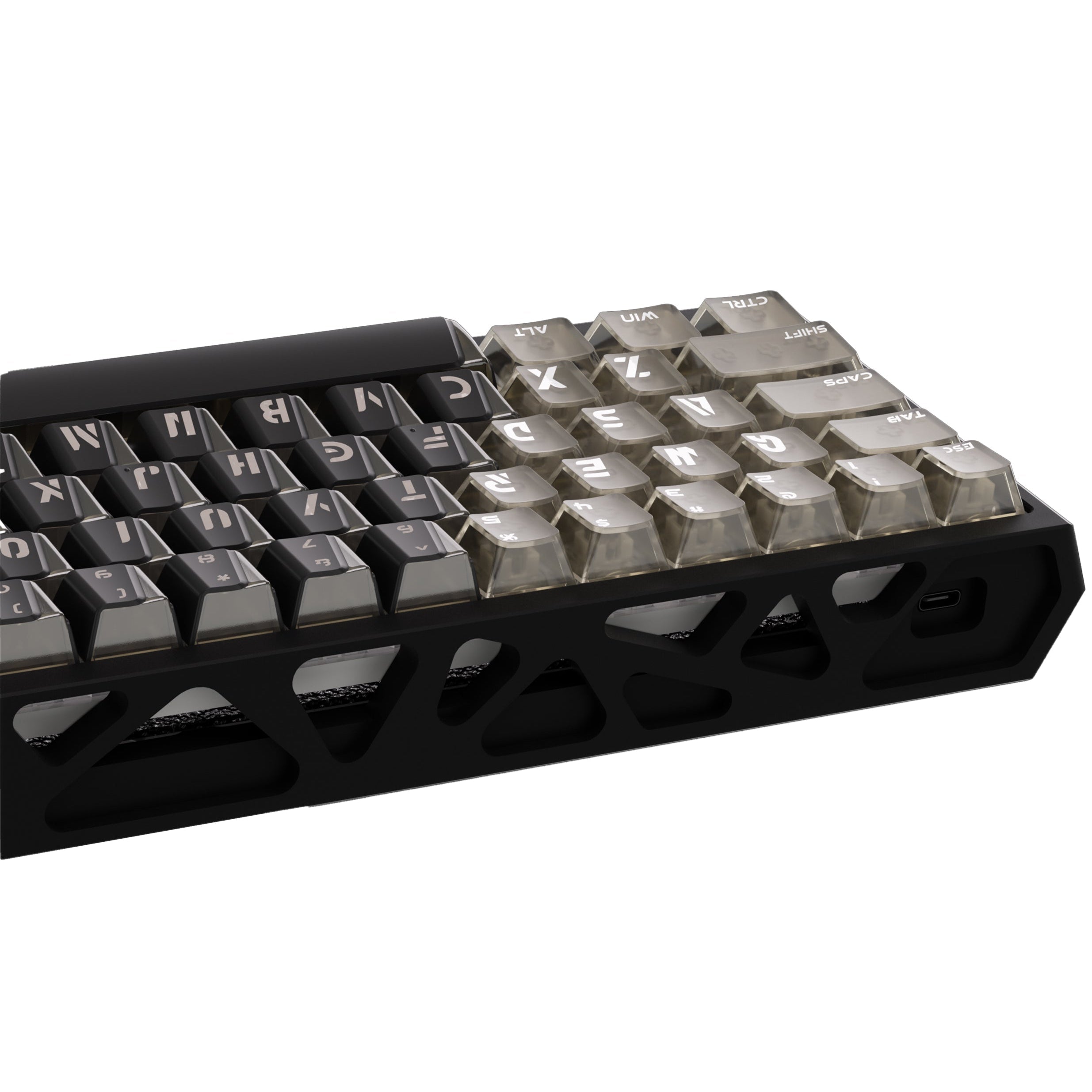

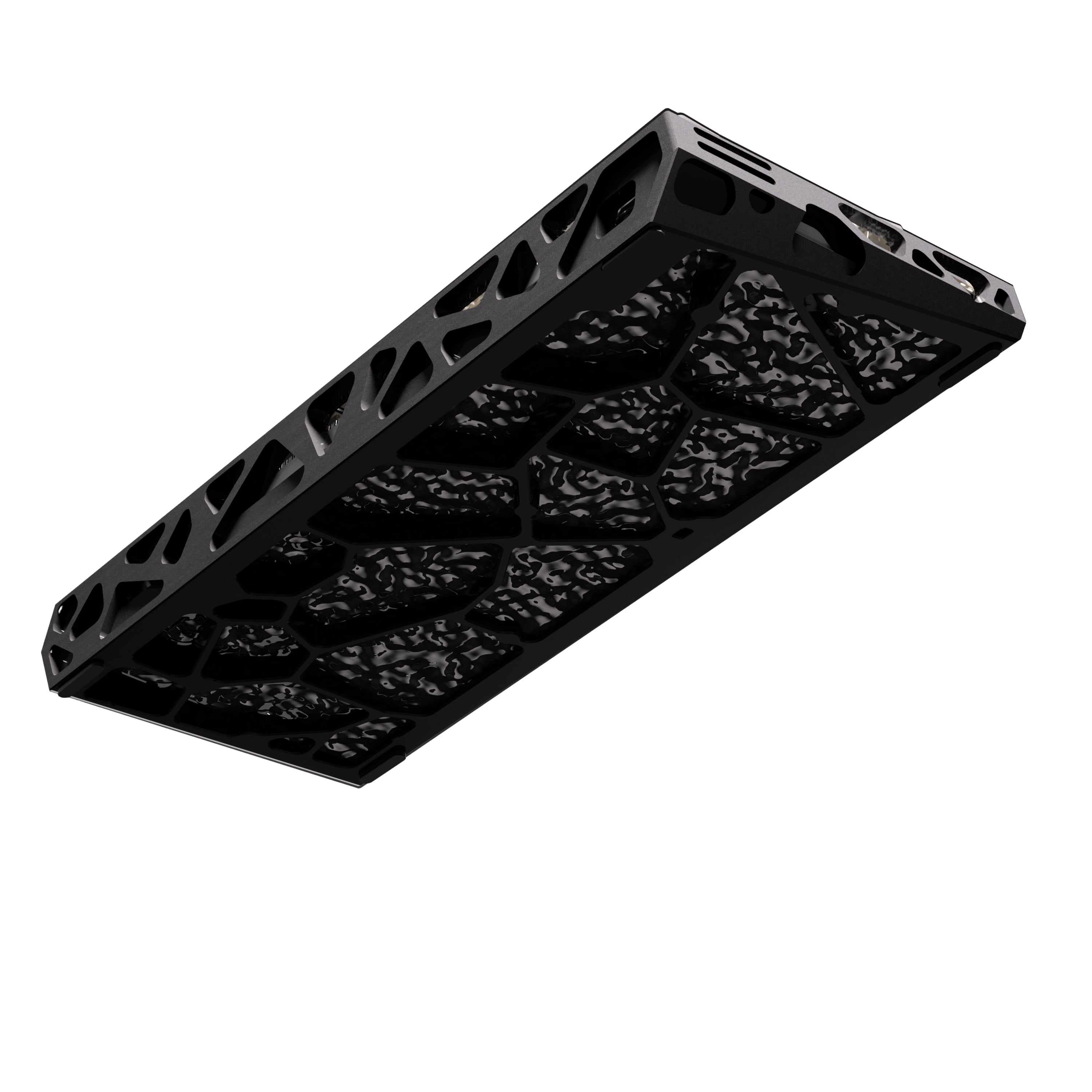

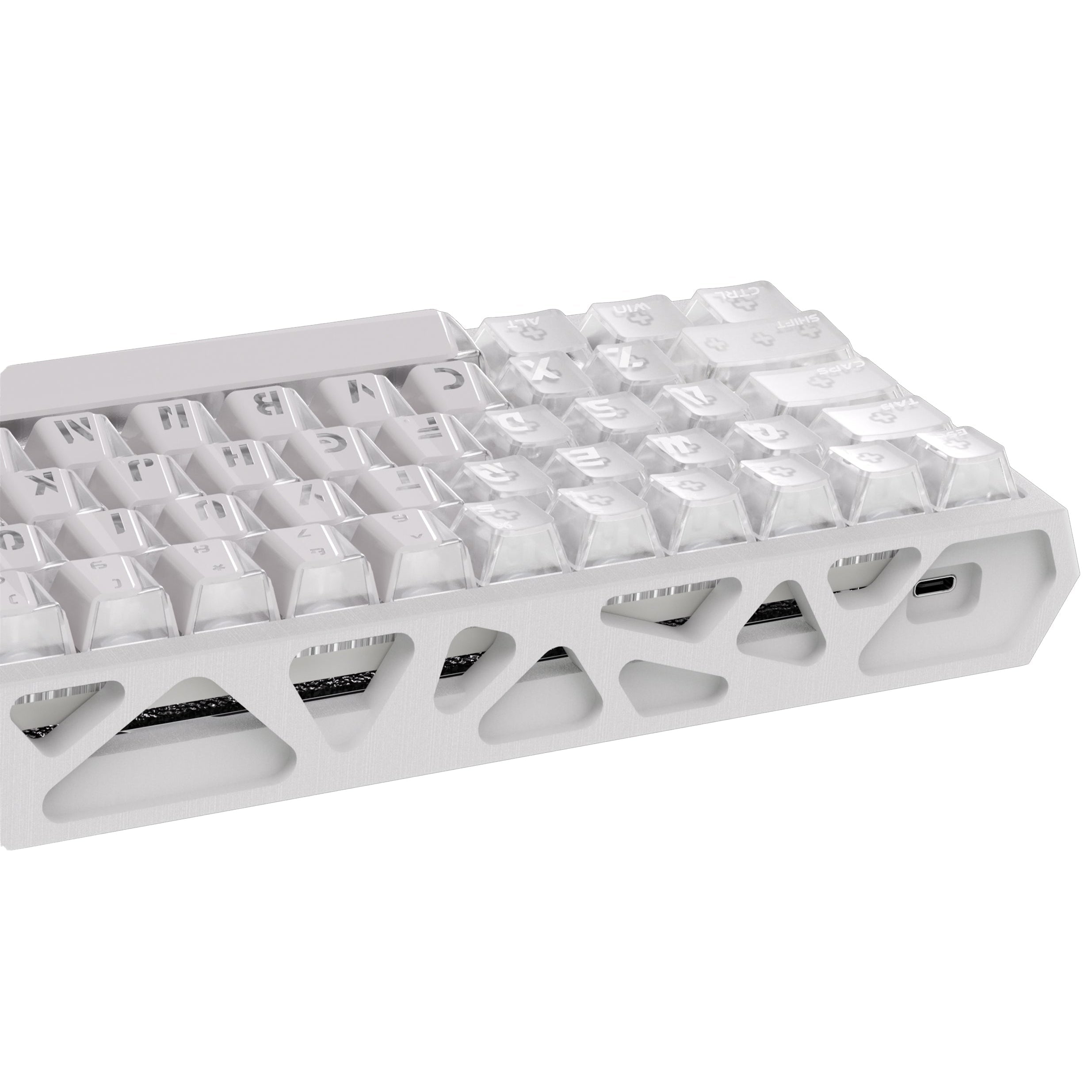

Full Aluminum Exoskeleton Design

Built to Stand Out. A CNC-machined aluminum skeleton chassis defines the Trooper63 HE with an open, mechanical silhouette, finished with carefully powder-coating surface treatments for each colorway.

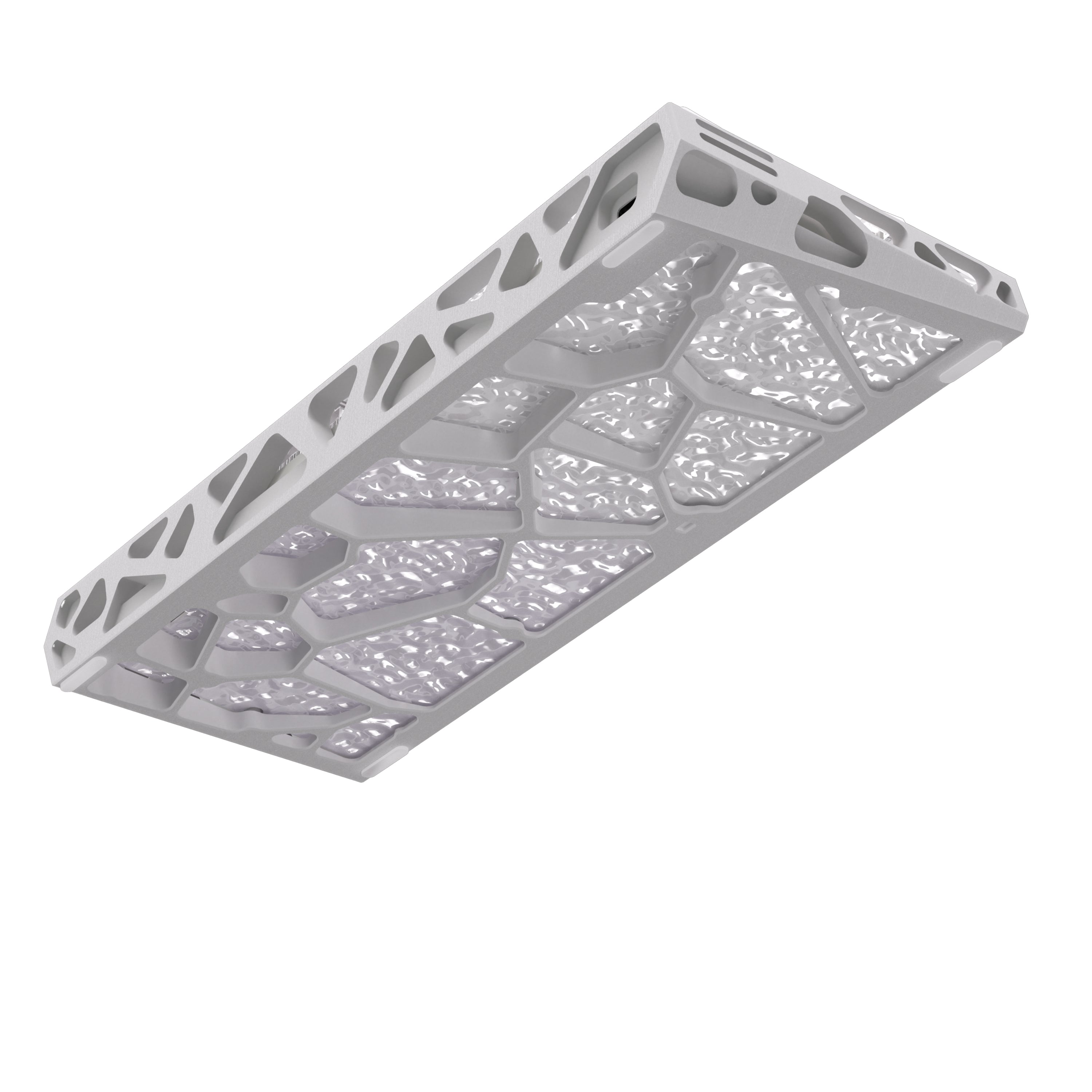

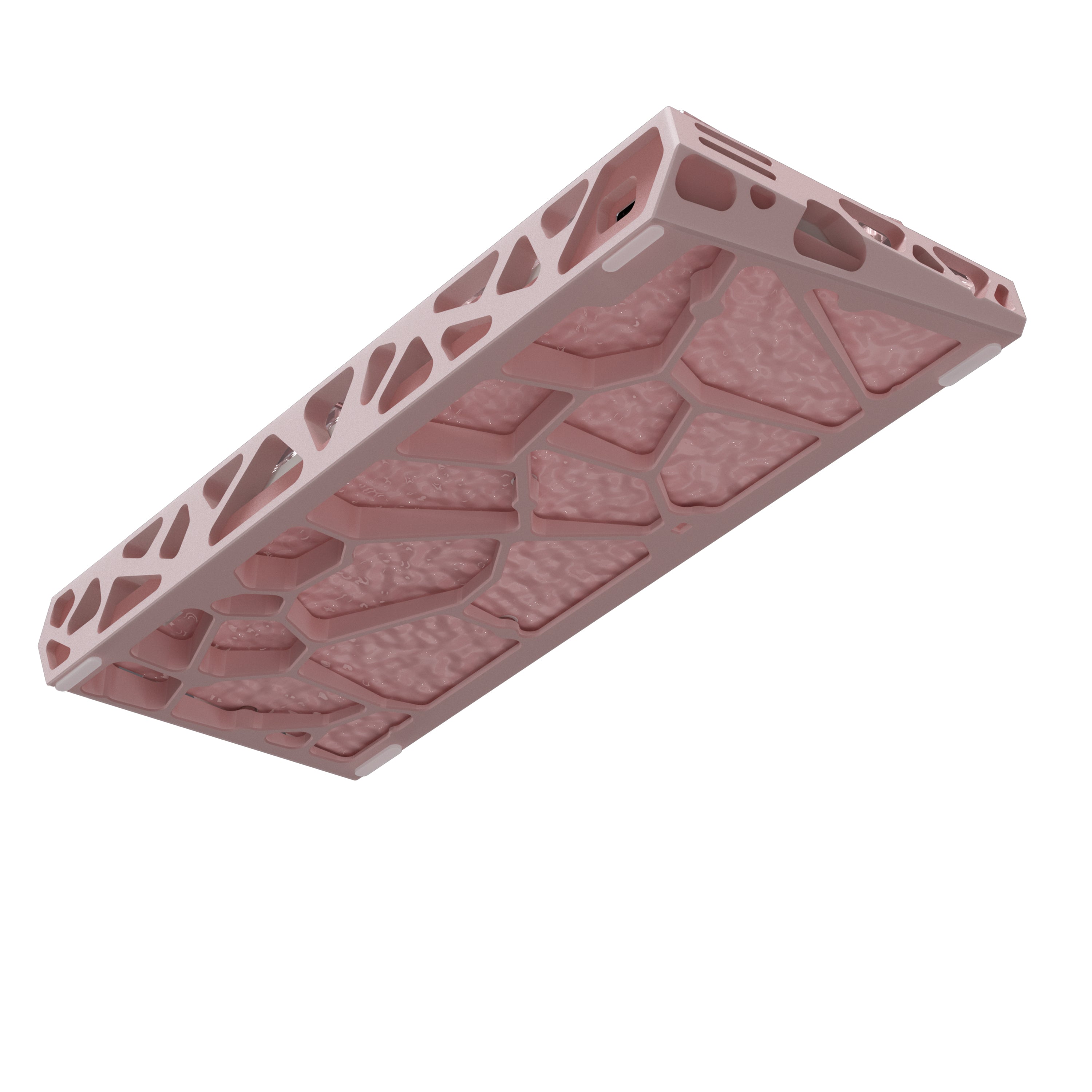

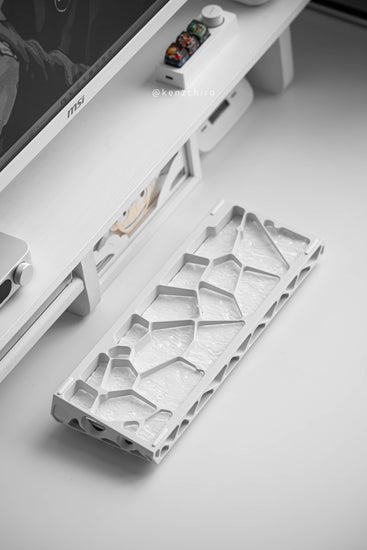

Underneath, the translucent Ripple Wave diffusion plate adds more texture to the whole design.

Performance You Can Trust

Features That Matters. Nothing You Don't Need.

Not every player needs an extreme spec sheet. At 1000Hz polling and 1ms wired latency, it delivers consiste responsive control for competitive play while keeping the experience efficient and accessible. Whether you're playing at home, building a new setup, or simply looking for a keyboard that performs without demanding an extreme PC configuration.

3 Colors, One Experience.

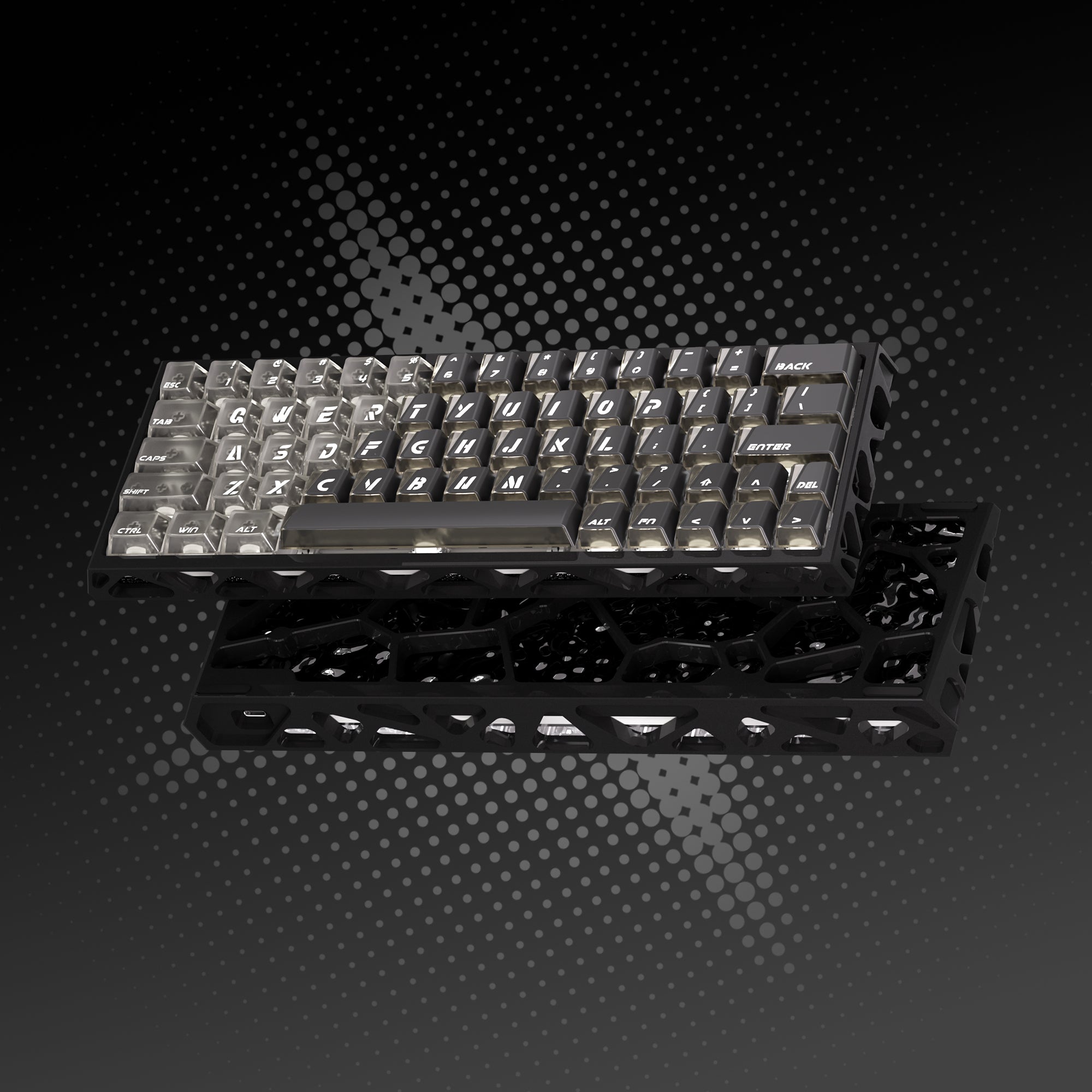

Phantom Black

Stella White

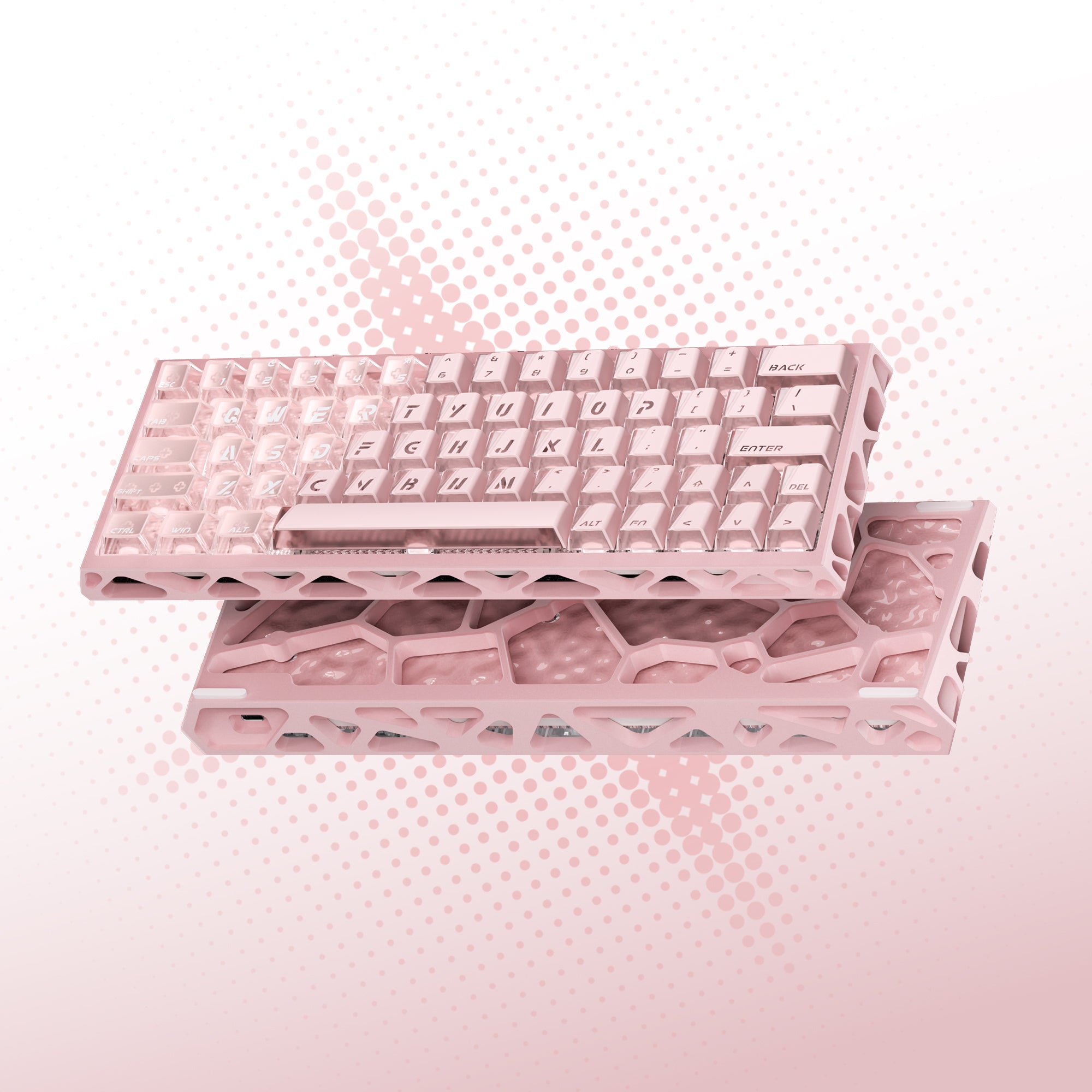

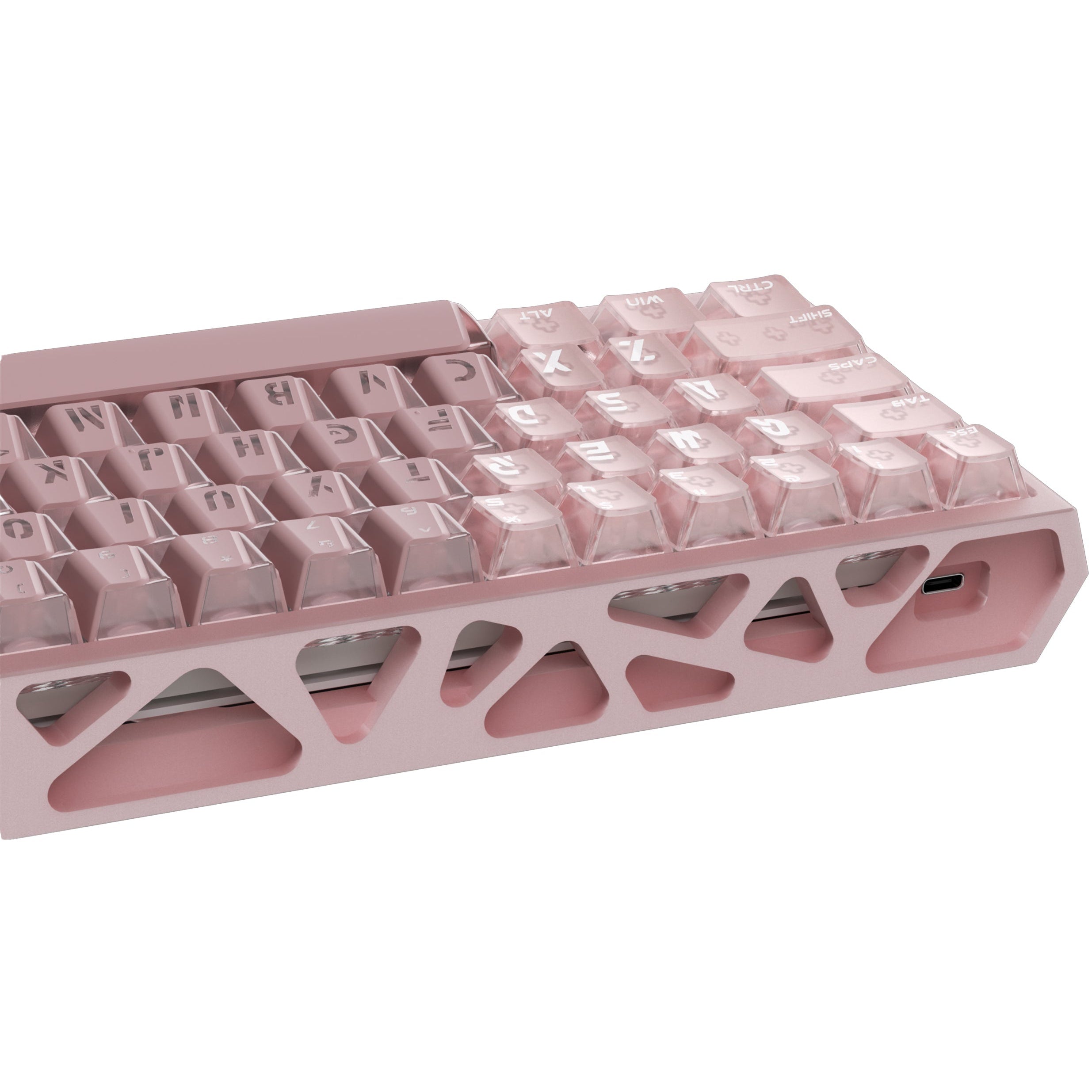

Sakura Pink

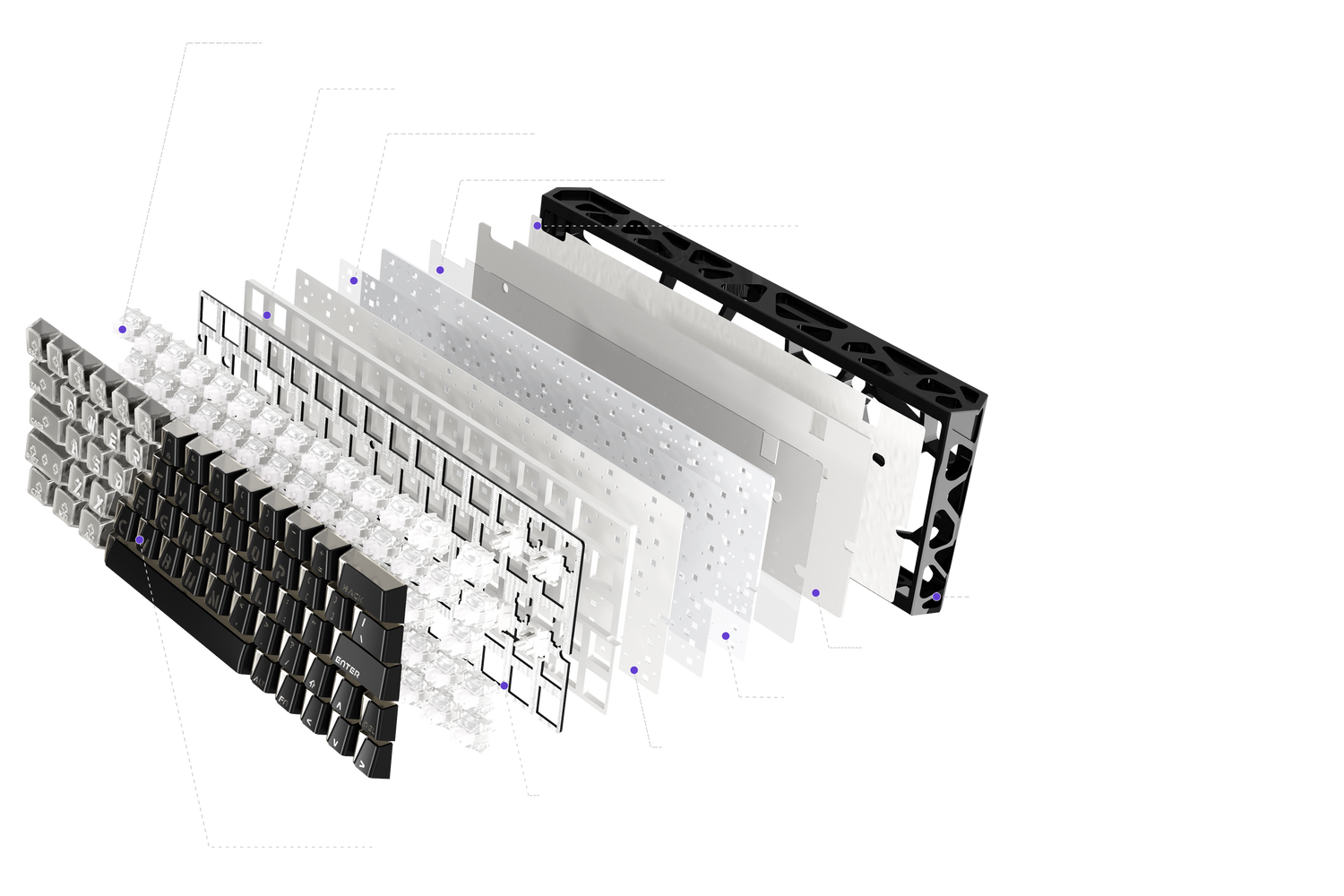

Layered For A Better Feel

Multiple layers of acoustic foam and a Tray Mount structure create a firm, controlled bottom-out with a clean, focused sound profile.

Solid when you press. Crisp when you type. Every layer is tuned to keep the experience balanced from feel to sound.

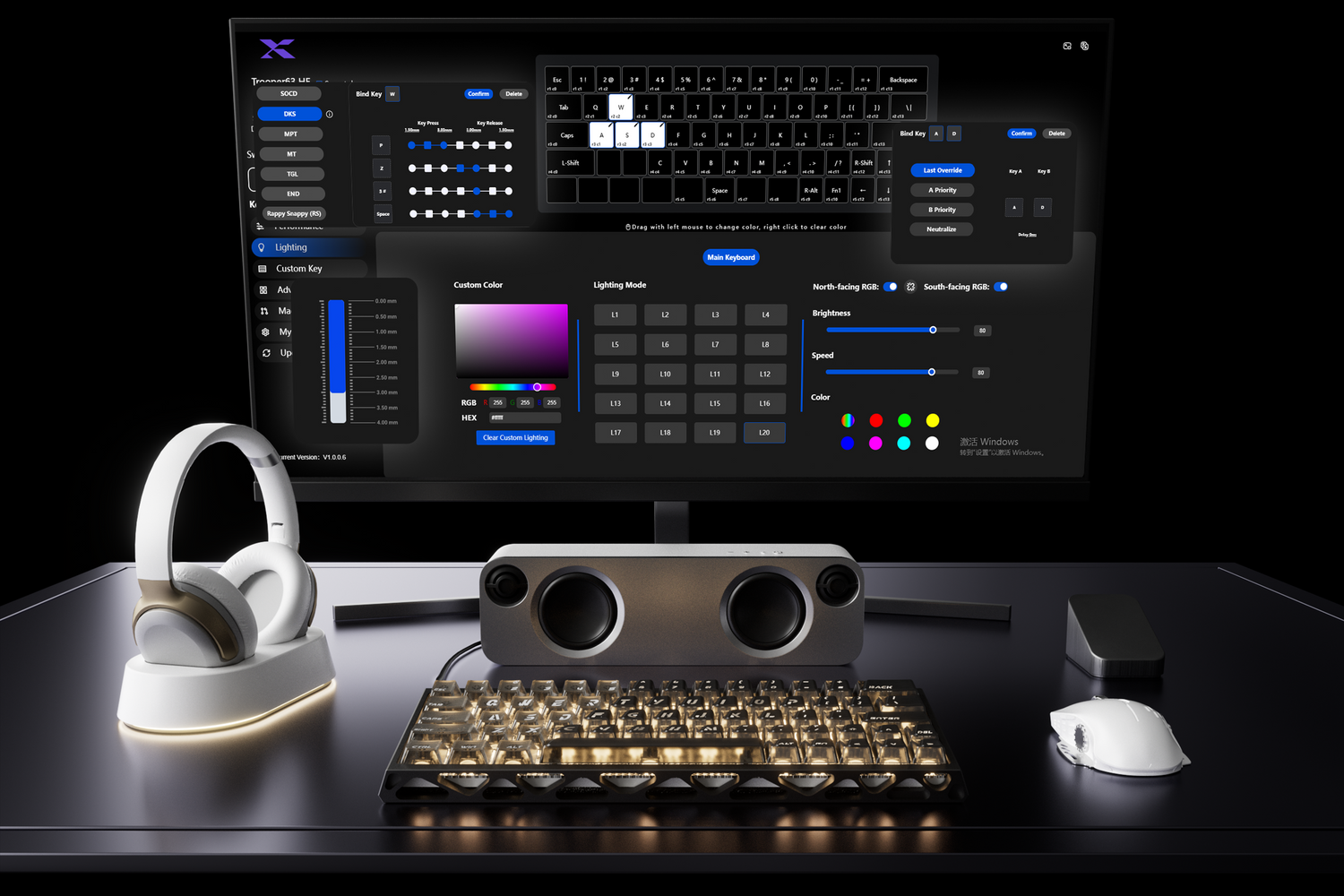

Custom Web Driver

Every Input, Precisely Yours.

Configure actuation, Rapid Trigger, RGB, switch calibration, key behavior, and onboard profiles through the custom web driver.
