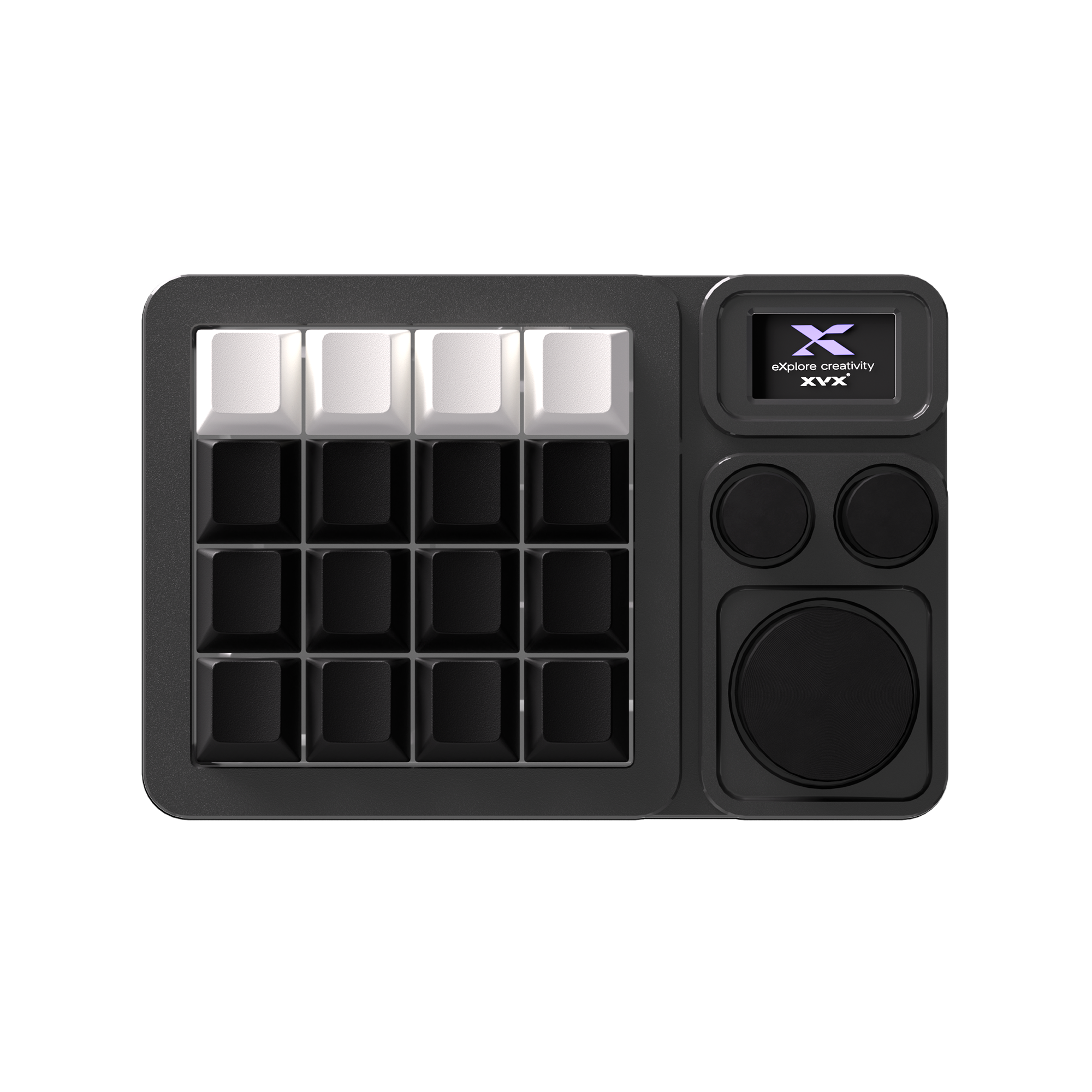

XVX Nano20 Programmable 16-Key Macro Pad with Mini Display and Knobs
- Model: XVX Nano20 Macro Pad
- Layout: 16 Keys + 3 Knobs + 1 Mini Display

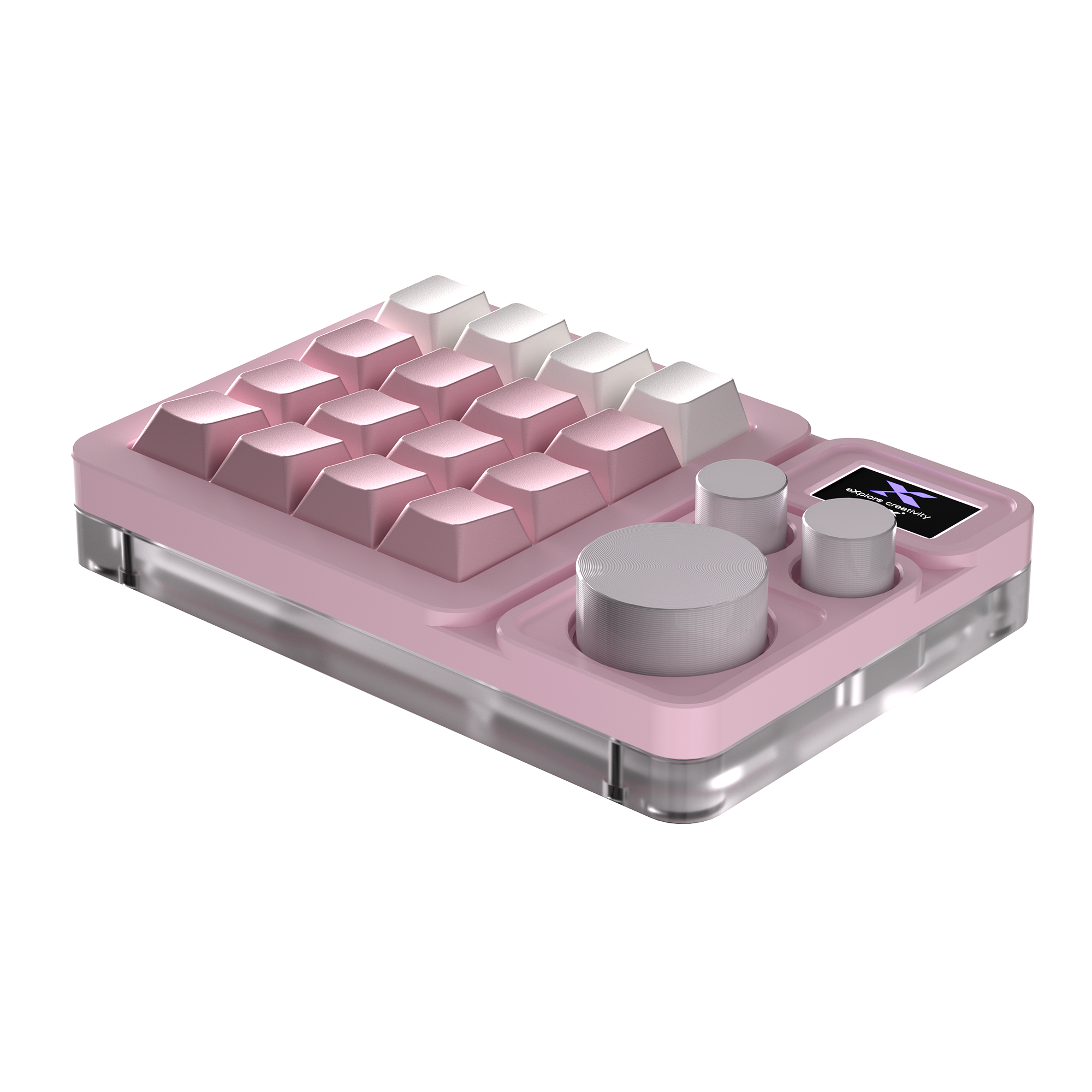

- Color Option: E-Coated White / Anodized Black / E-Coated Pink
- Connection Types: Wired
- Keycap: Cherry Profile Double-Shot Blank Keycap
- Stock Switches: XVX Medium Purple Linear Switch
- Case Material: Aluminum Top Housing + PC Bottom Housing
- Case Finish: Anodizing (Black version) / E-Coating (White and pink version)

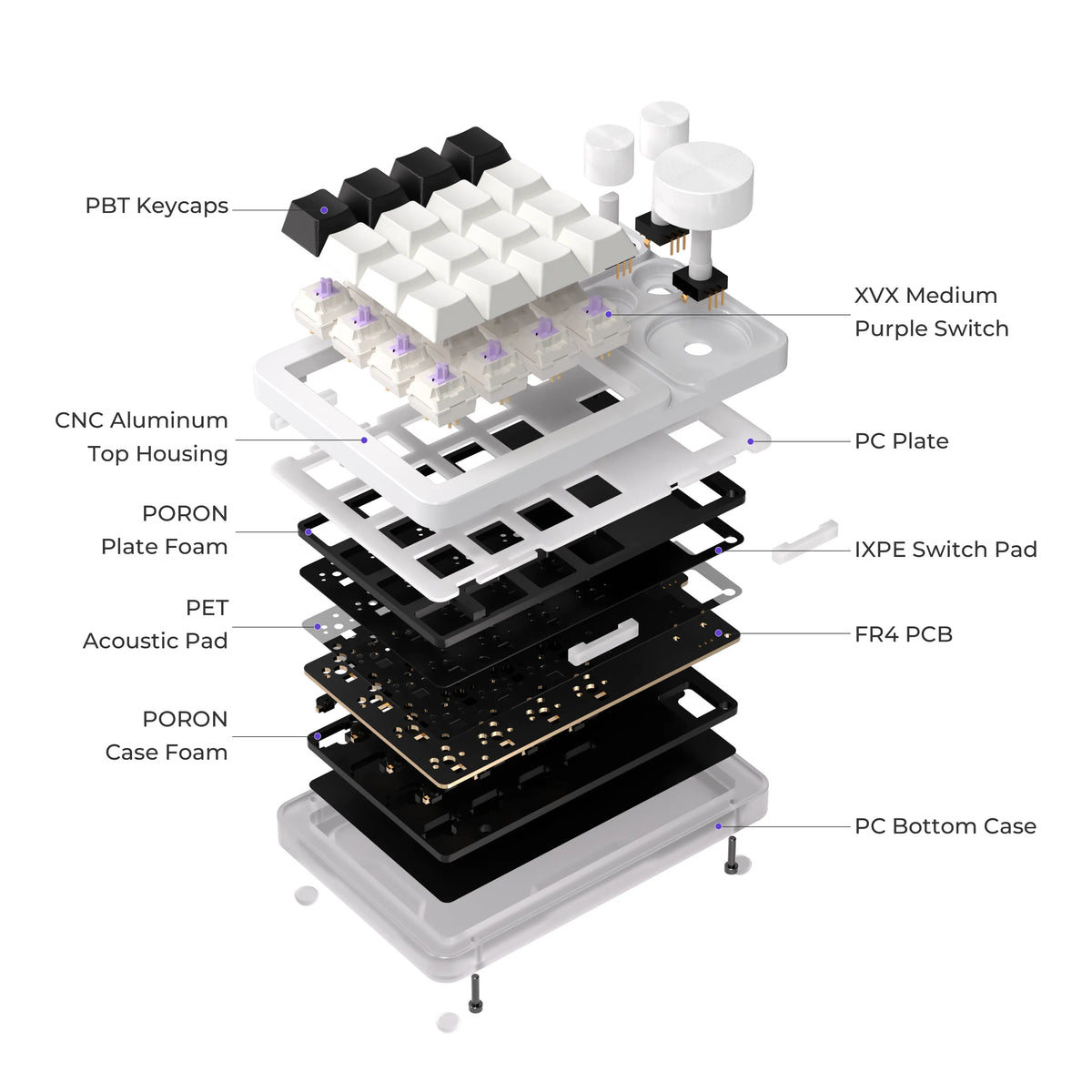

- Sound Dampeners: PORON Plate Foam + IXPE Switch Pad + PET Acoustic Film + PORON Case Foam
- Plate: Non Flex-Cut, PC Material
- PCB: 1.2mm, FR4 Material, Hot-swap, Non Flex-Cut
- Mounting Style: Top Mount
- USB Polling Rate: 1000Hz
- Hot-Swap: Yes
- NKRO (Anti-Ghosting): Yes
- Interface: USB Type-C
- RGB LEDs: South-Facing Per-Key RGB
- Keyboard Net Weight: 320±5 gram

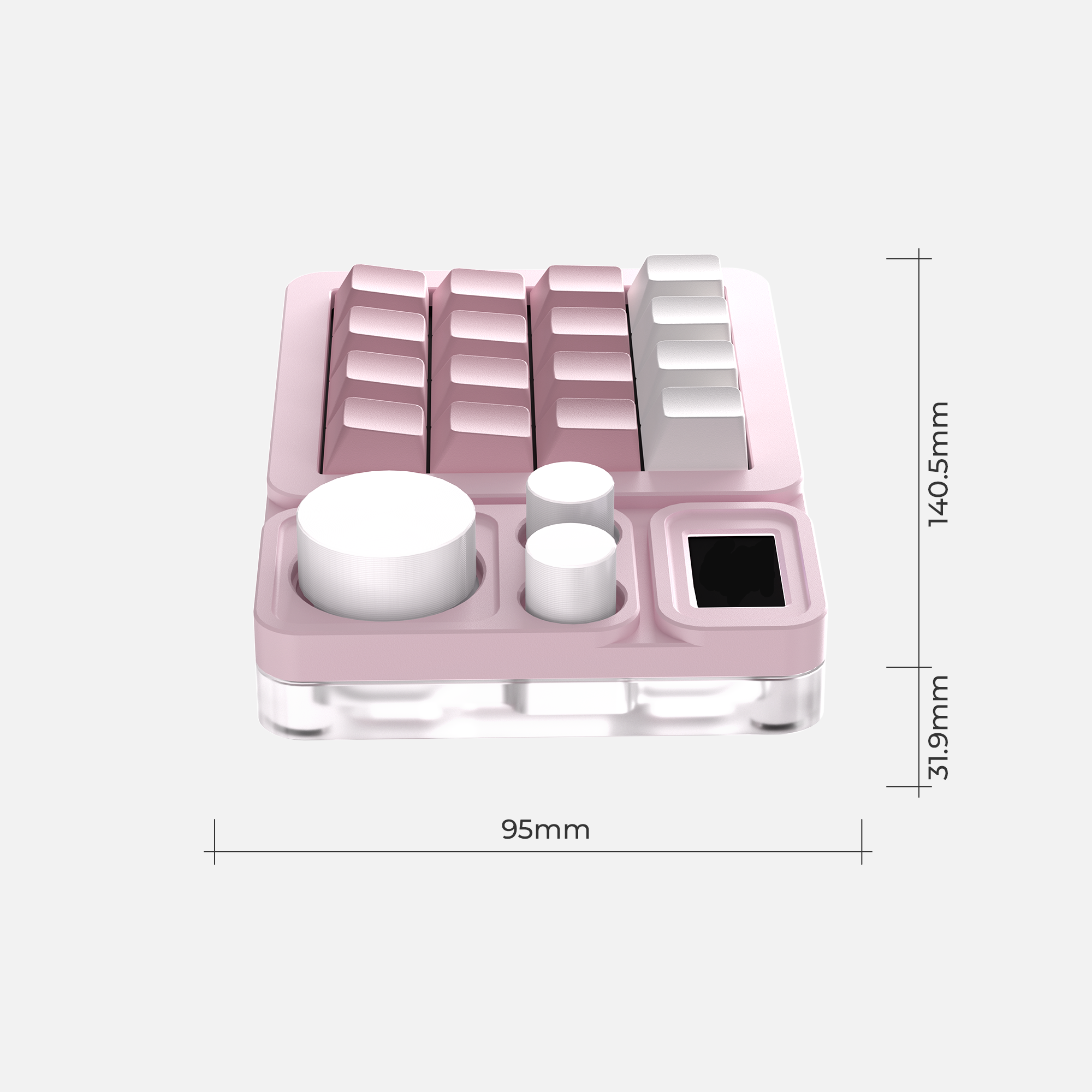

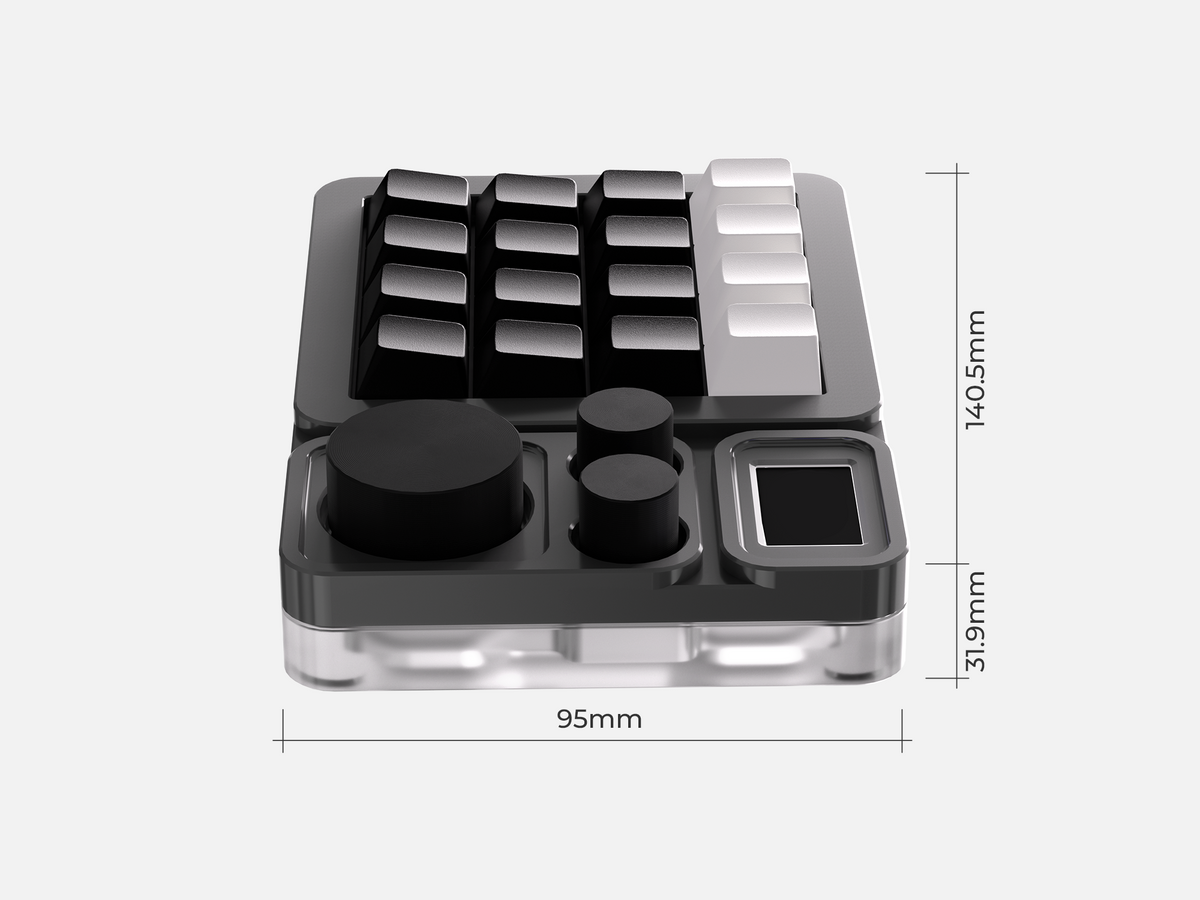

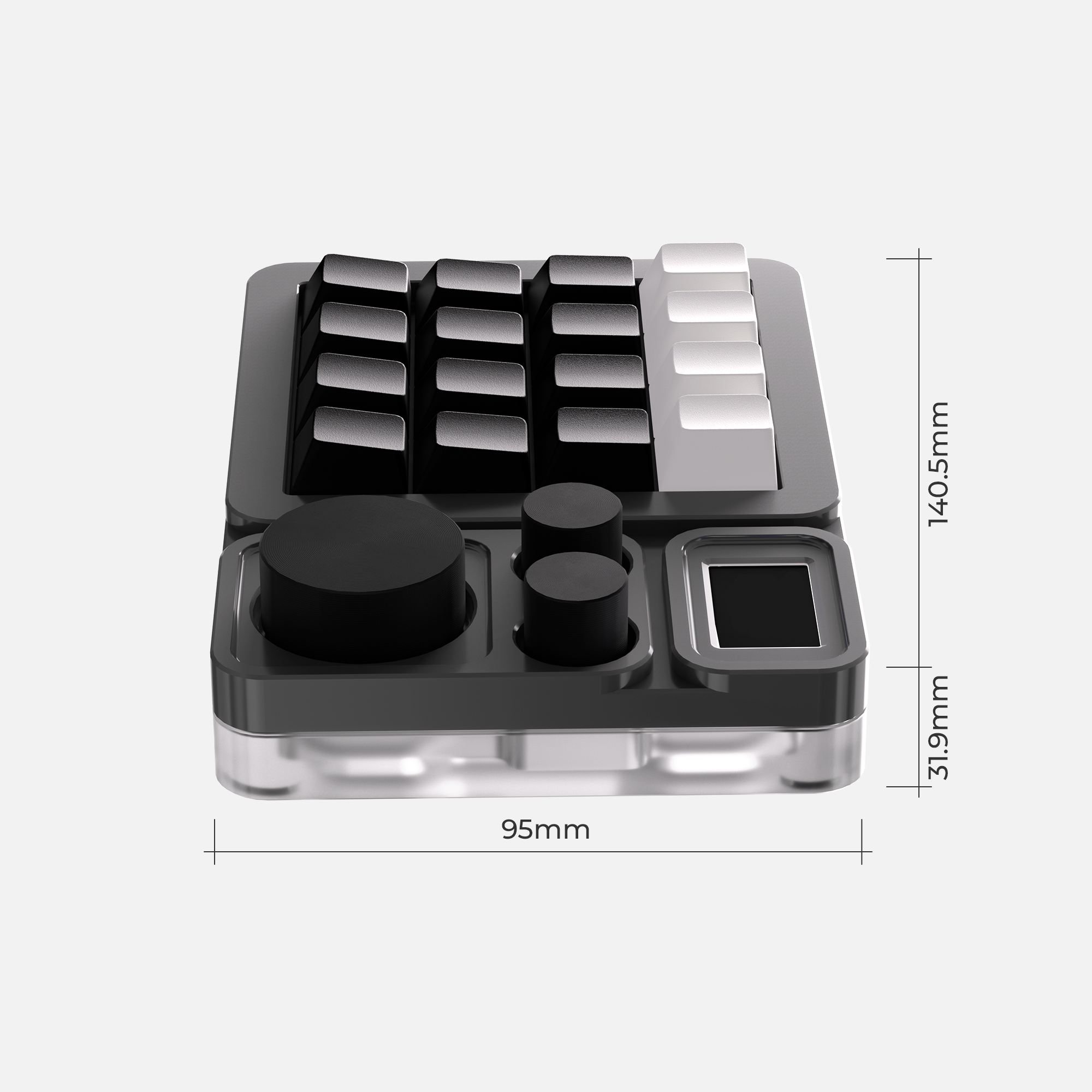

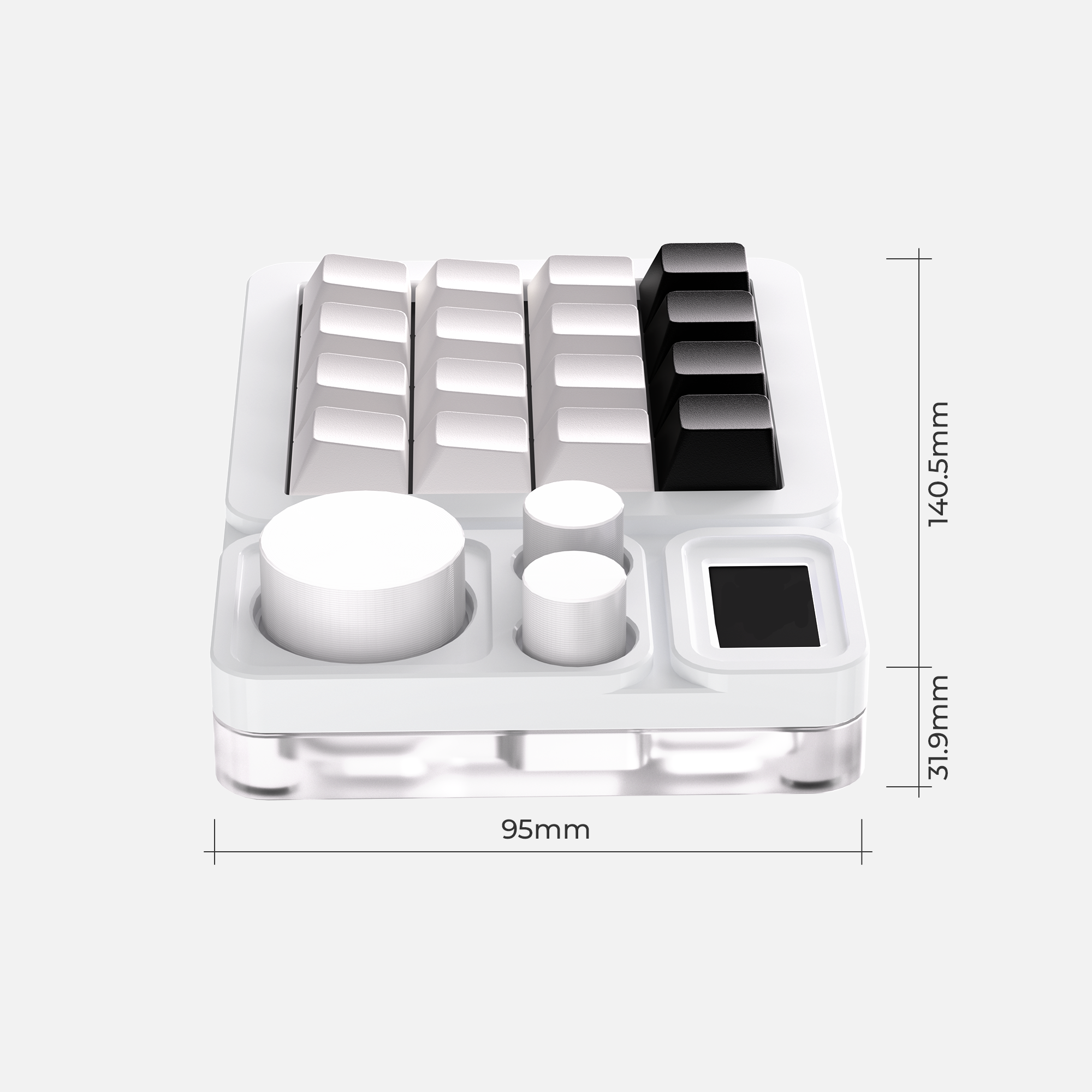

- Dimensions: 140.5mm x 95mm x 31.9mm (with keycaps)
- Compatible Operating Systems: Windows / macOS / Linux
- Web Driver: VIA Support
- VIA JSON File Download: Link
- Model: XVX Medium Purple Switch
- Type: Linear / Mechanical
- Top Housing Material: PA66 Nylon
- Bottom Housing Material: POM
- Stem Material: POM
- Operating Force: 48±5gf
- Bottom-out: 60gf Max
- Pre-travel: 2.0±0.4mm
- Total Travel: 3.4±0.4mm
- Lifespan: 50 million+ Clicks
- Pre-Lubed: Yes
- XVX Nano20 Macro Pad
- USB Type-A to Type-C cable
- Extra stock switches
- User manual
We aim to make every order fast and hassle-free. In-stock orders are processed and shipped within 48 business hours, with most orders leaving our warehouse within 24 hours.
View details →
Shop with confidence. Return your purchase within 7 days for a full refund. If your product has an issue, we'll help troubleshoot it. If we can't resolve it, we'll provide a free replacement or full refund within 30 days of delivery.
-
Worldwide Shipping
-
1-Year Warranty
-
Secure Checkout
-
Customer Support
Wide Compatibility
On-Board Memory
Web-Based Driver
Open Source

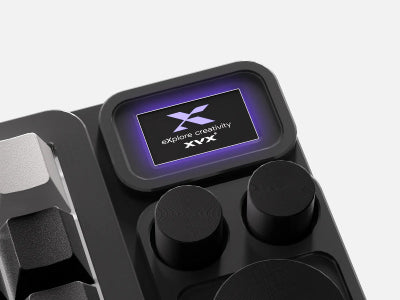

TFT Display
Multiple Workflows
Full RGB

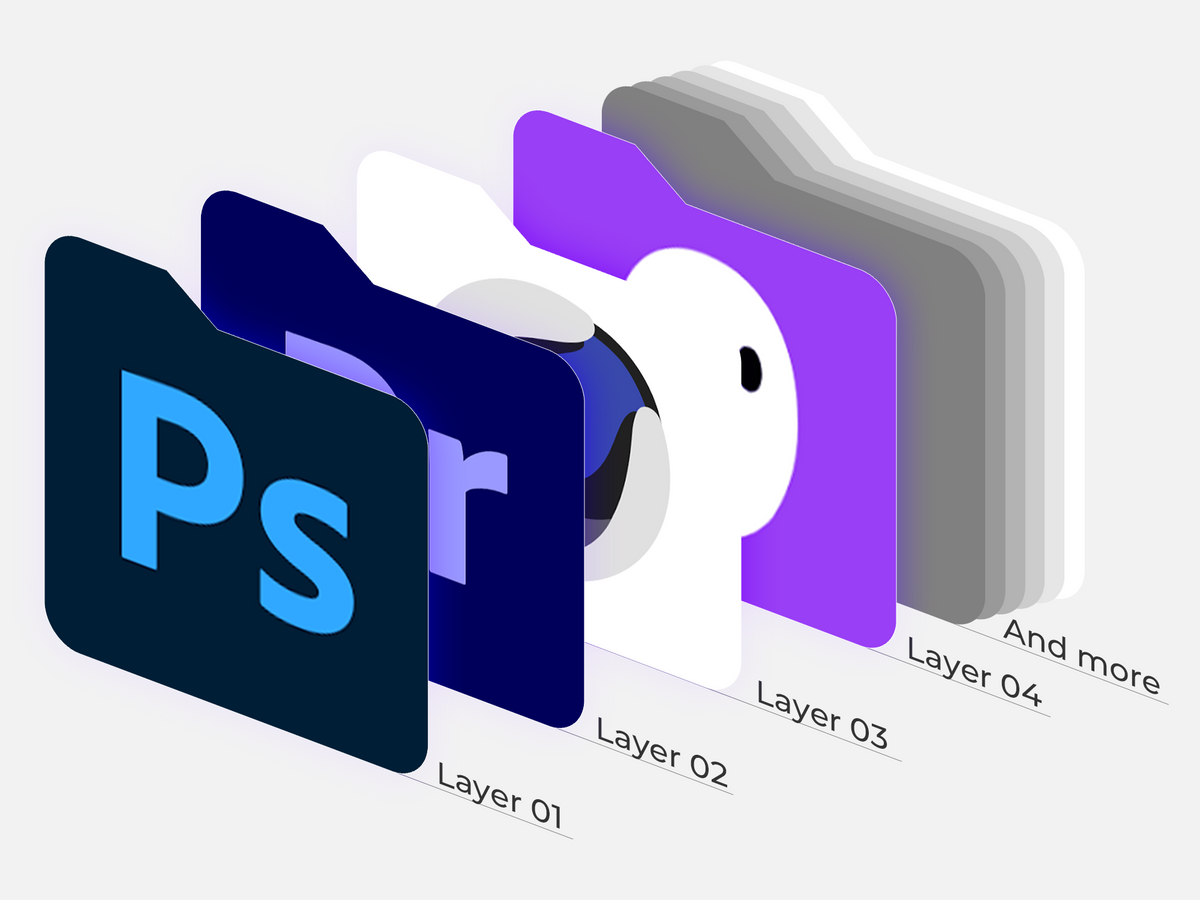

One Pad. Ten Workflows.
Don’t limit your setup to a single layout. Nano20 gives you 10 programmable layers, letting the same 20 controls perform completely different functions depending on your workflow.
With onboard memory, your configurations are stored directly on Nano20 and stay with the device.

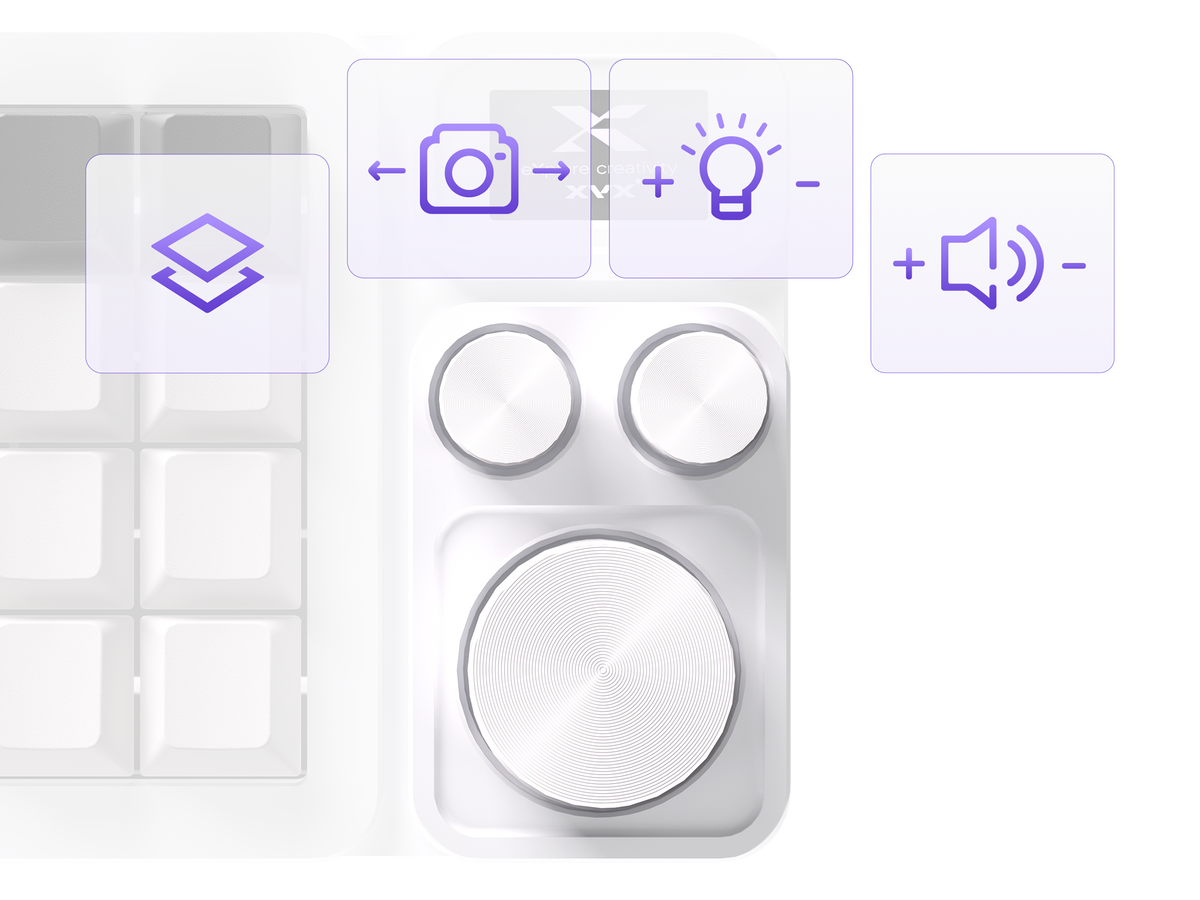

Multifunction Knobs for Control
The keys put your most-used shortcuts and macros within reach, while three aluminum rotary knobs give you precise, tactile control.
Use a knob to scrub through a video timeline, jump between frames, adjust brush size, zoom in and out, or fine-tune volume without reaching for your mouse.

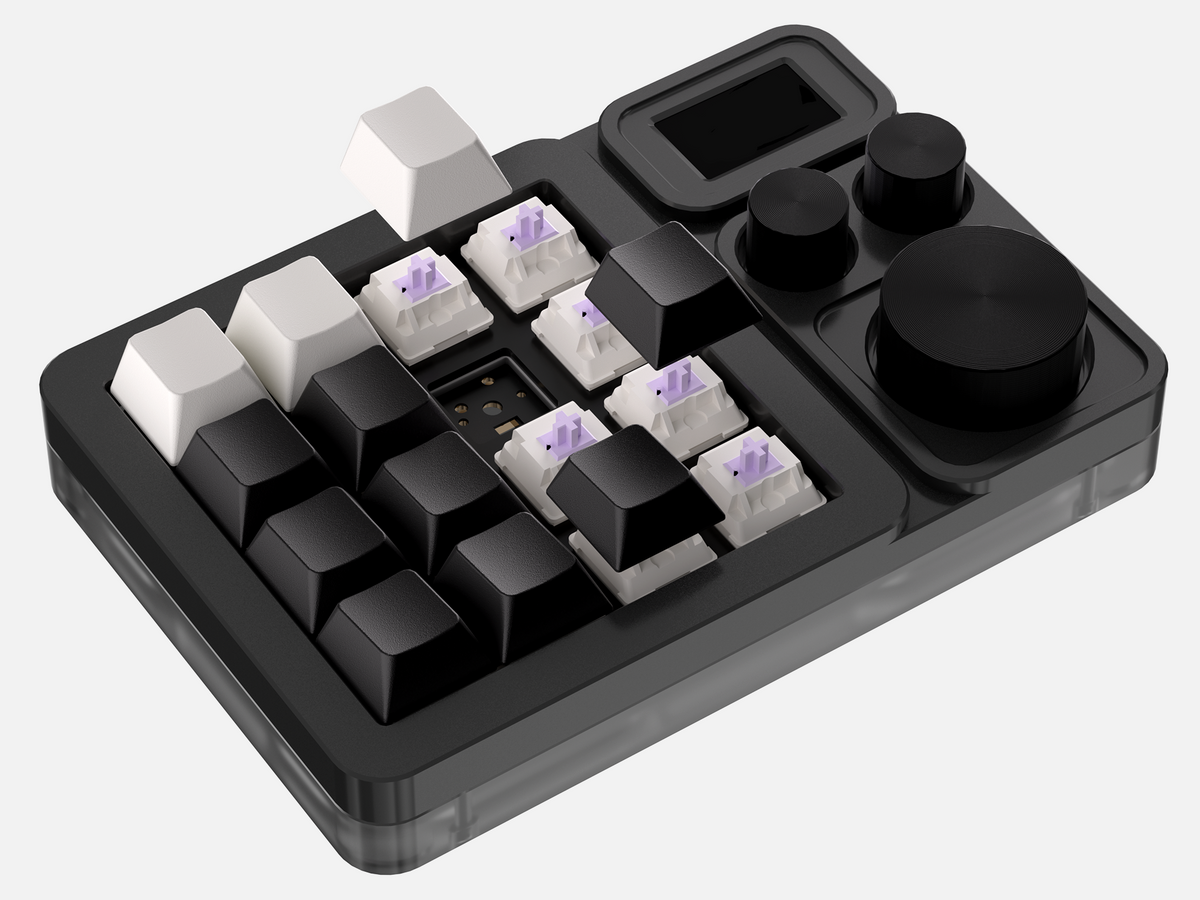

Fine-Tuned Feel in Every Press
Pre-lubed Medium Purple switches, multi-layer internal dampening, and tactile aluminum knobs give Nano20 a refined feel across every interaction.
Whether you're firing off quick commands in-game or working through a long editing session, every press and turn feels deliberate.

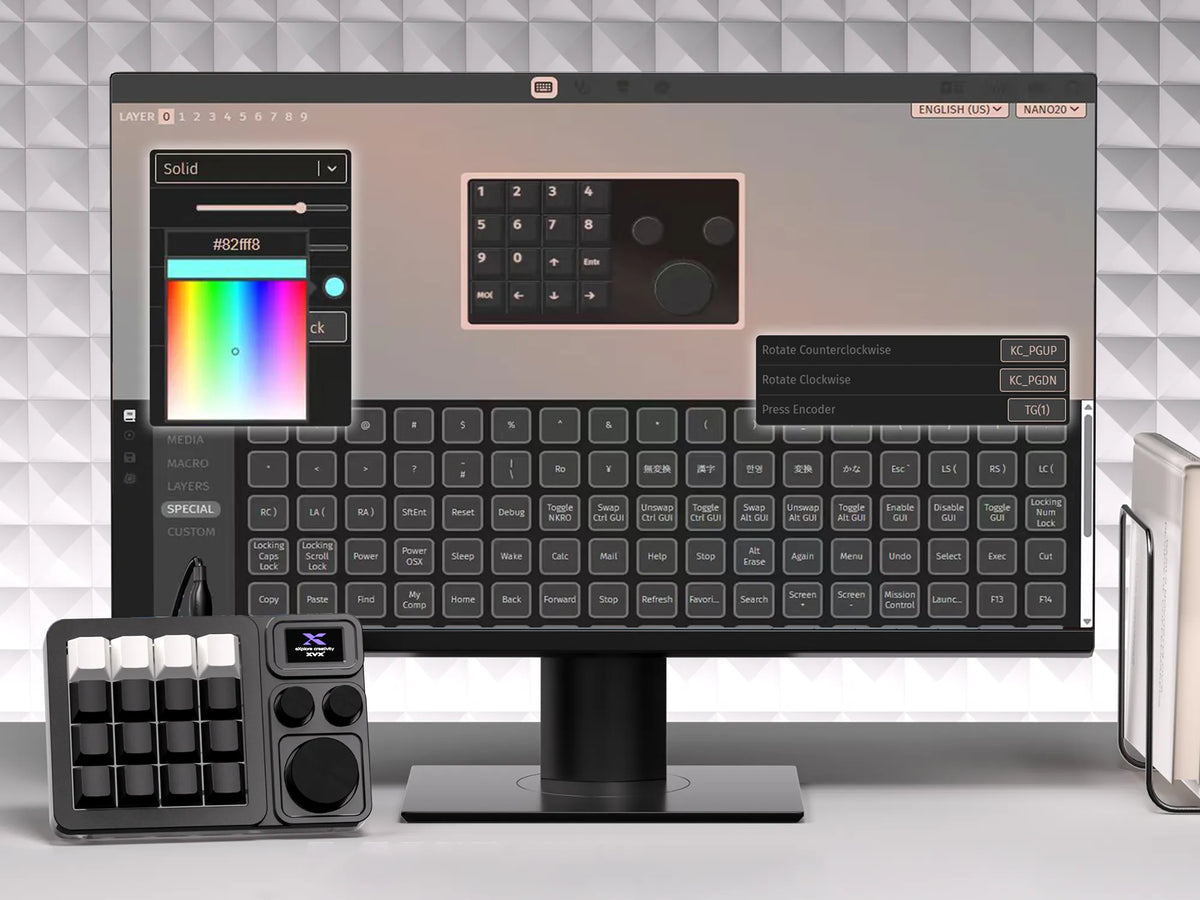

VIA + Open-Source Firmware
Use VIA to remap keys, create macros, and customize layers without flashing firmware. With open-source firmware support, advanced users can go further and develop custom functions and tailoring Nano20 to their exact workflow.
Cherry Profile PBT Keycaps
Durable PBT double-shot keycaps deliver lasting texture and resistance to shine, while the classic Cherry profile provides a sculpted shape for a more precise key positioning.
With blank legends, you’re free to define your own layout, keep it clean, or assign functions without being limited by printed labels.

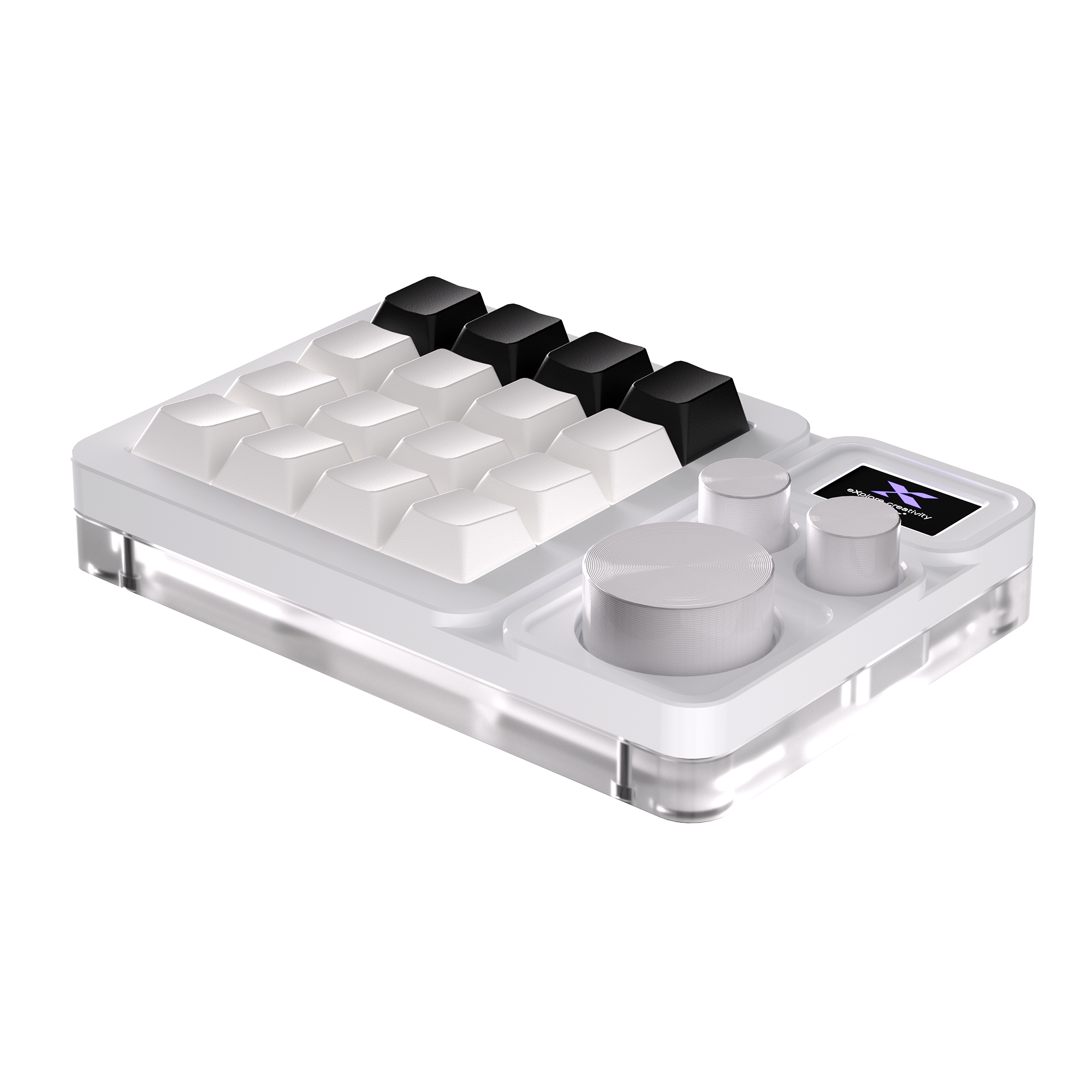

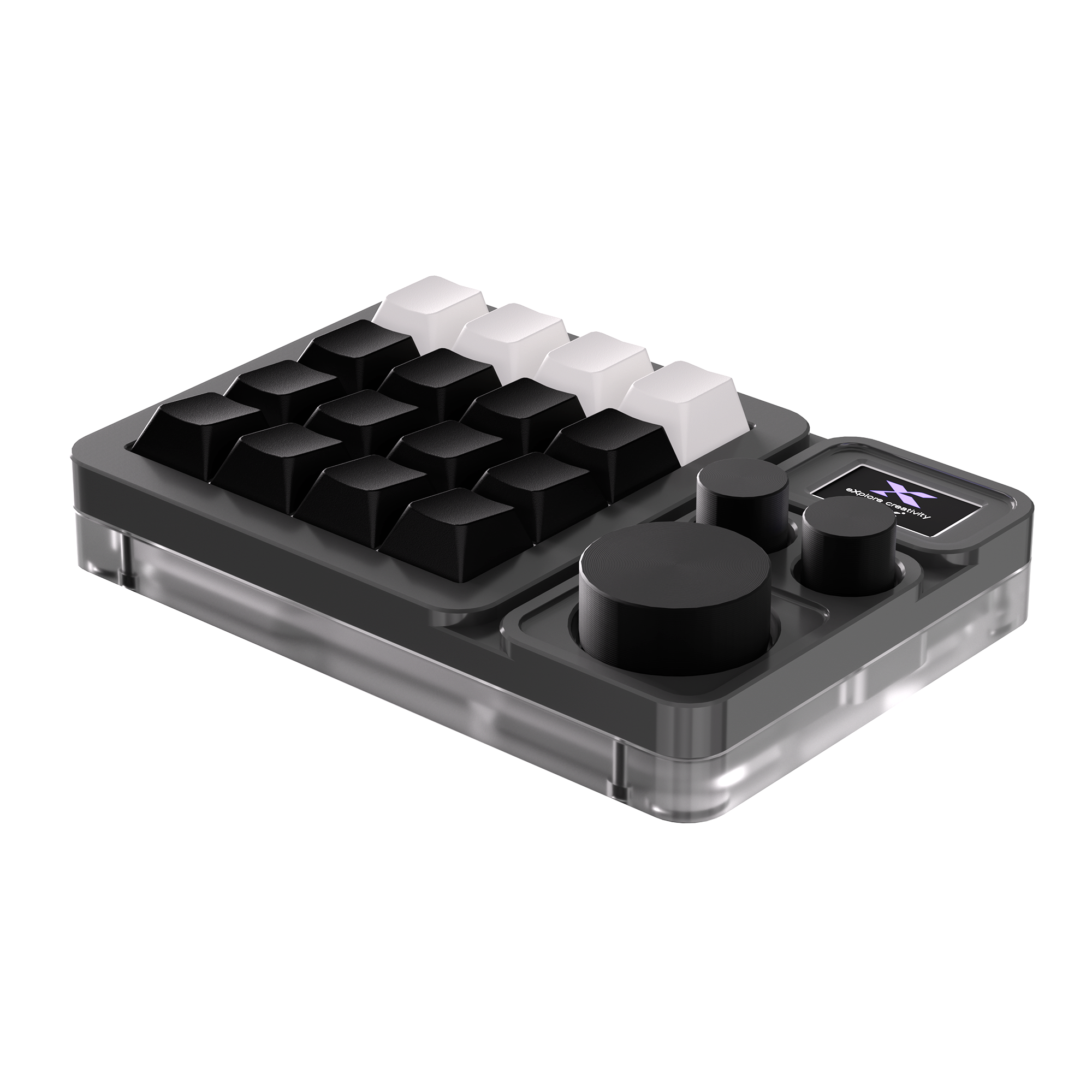

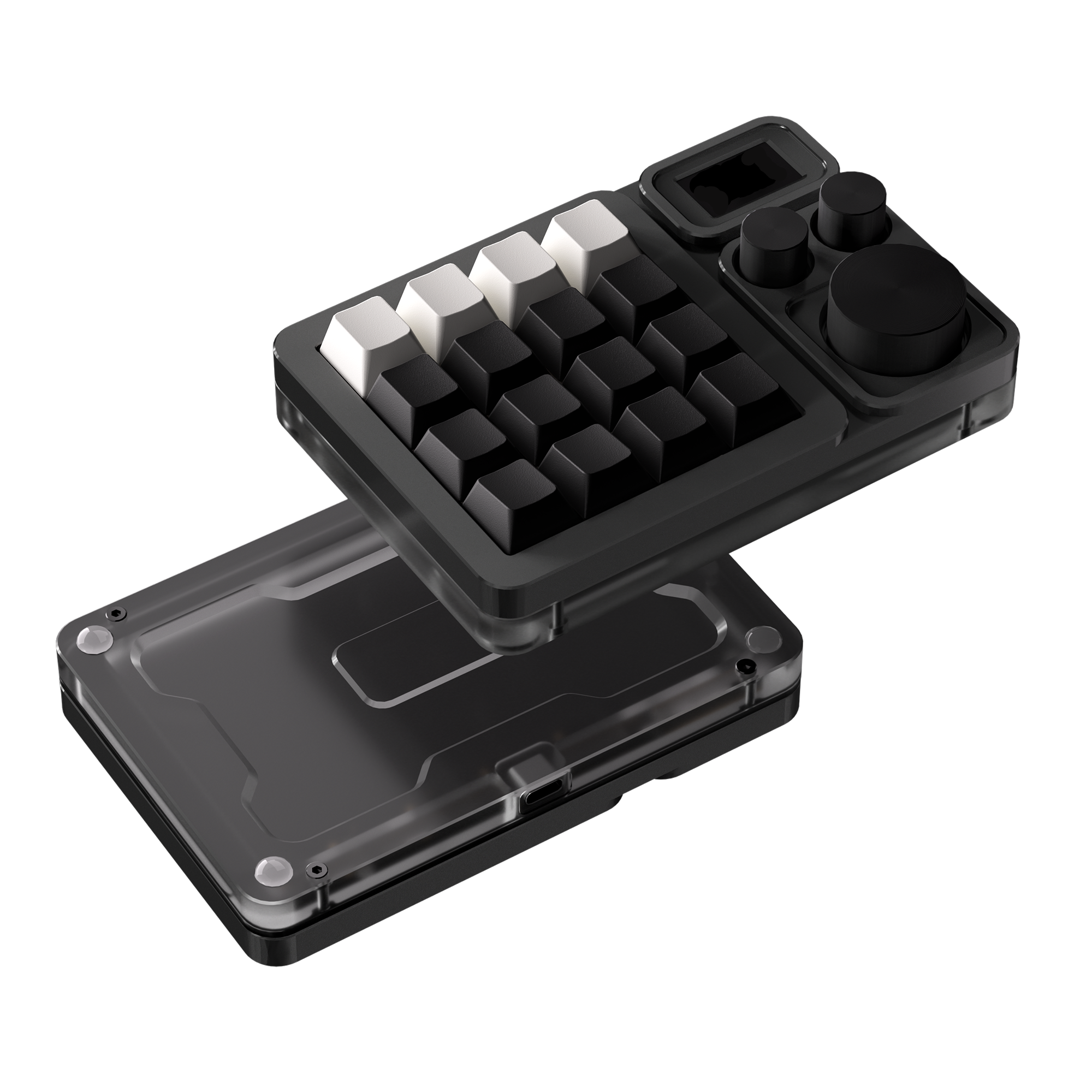

Compact & Sleek Design

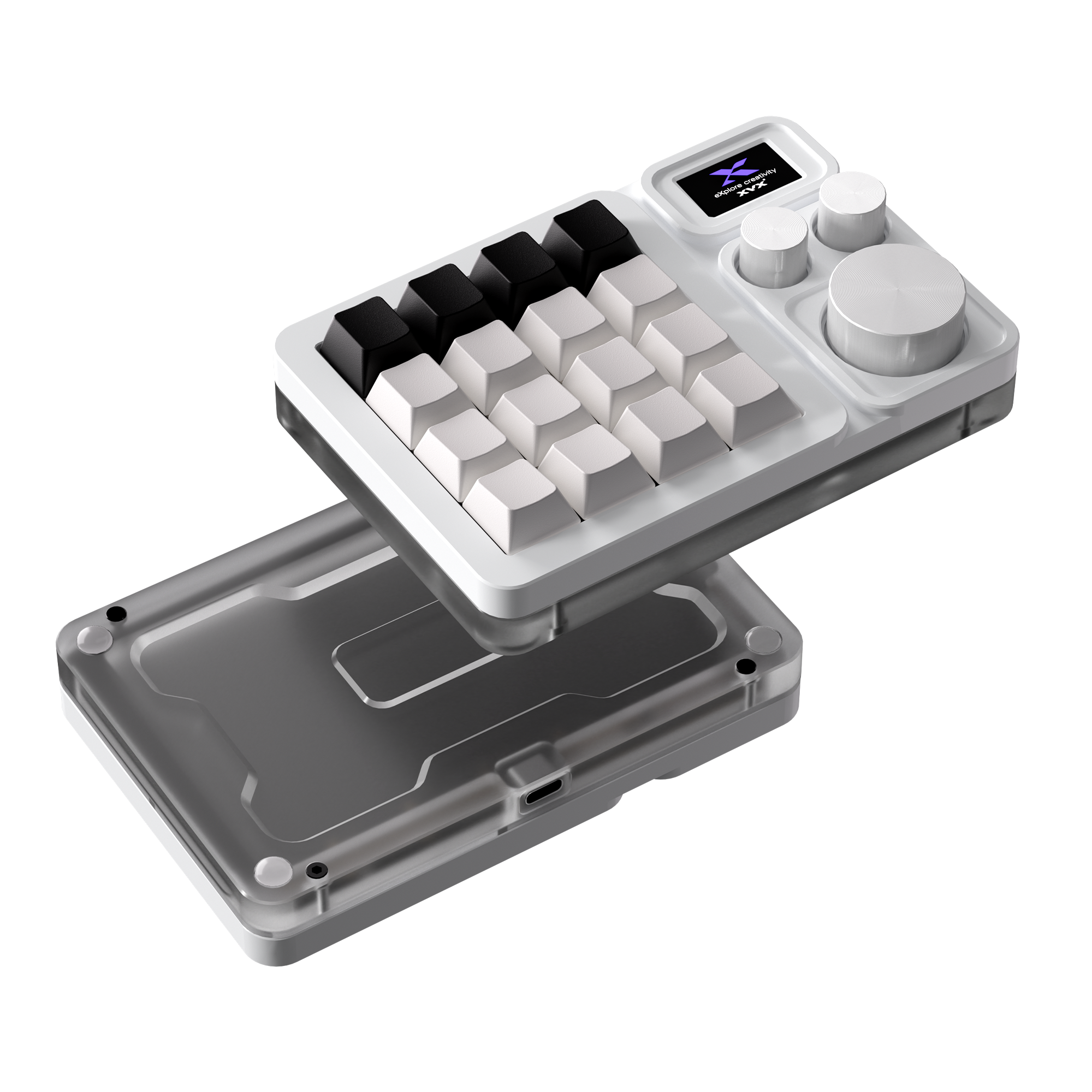

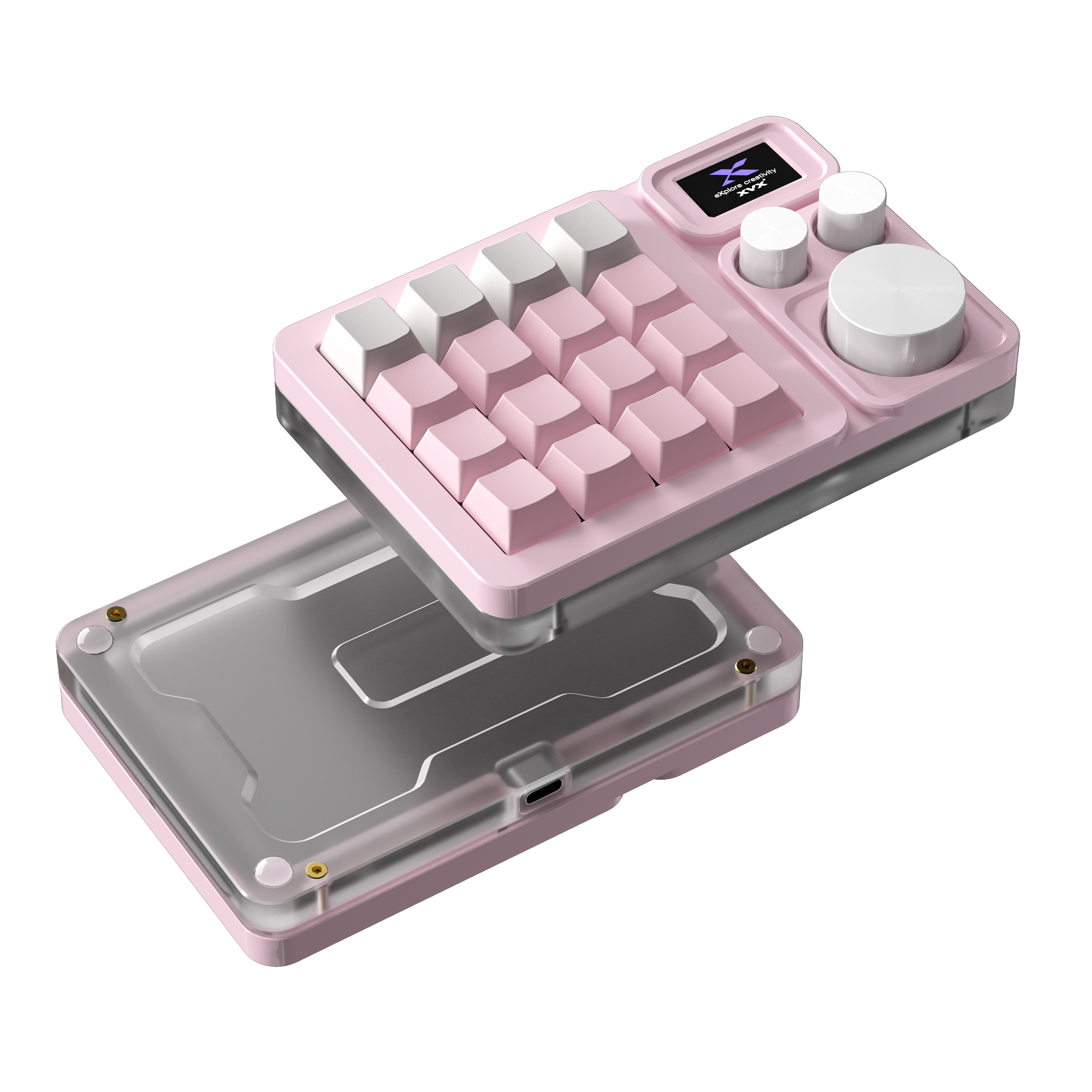

The aluminum top case delivers a solid, refined feel, while the transparent PC bottom adds visual depth. Its compact 4×4 layout with three knobs packs extensive control into a small footprint, keeping your desk organized without sacrificing functionality.
